FrequencyDC
Current75A
Current Rating75A
MountingChassis Mount, Chassis, Screw, Flanges
Quick Jump:
Technical Specifications
Schaffner FN2200-75-34 technical specifications.
General
Current
75A
Current Rating
75A
Depth
95mm
Filter Type
DC
Height
80mm
Length
200mm
Max Current Rating
75A
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
1.2kV
Mount
Chassis Mount, Chassis, Screw, Flanges
Number of Phases
1
Operating Frequency
DC
Packaging
Tray
Primary Type
DC
Radiation Hardening
No
Ratings
IP20
RoHS Compliant
Yes
Series
FN 2200
Termination
Terminal Block
DC Rated Voltage
1.2kV
Compliance
RoHS
Compliant
Datasheet
Schaffner FN2200-75-34 Datasheet
Download the complete datasheet for Schaffner FN2200-75-34 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

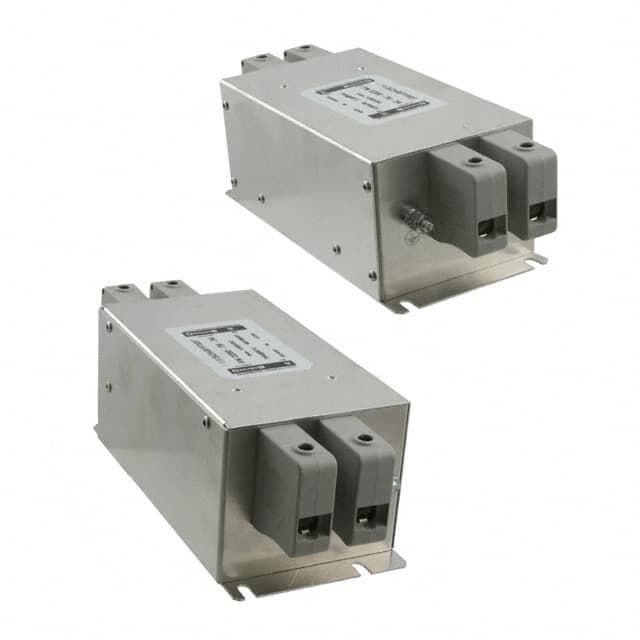

Product Images
