Frequency60Hz
Package300
Current100A
Current Rating100A
Quick Jump:
Technical Specifications
Schaffner FN3270H-100-35 technical specifications.
General
Package/Case
300
Current
100A
Current Rating
100A
Depth
290mm
Frequency
60Hz
Height
90mm
Leakage Current
29.4mA
Length
95mm
Max Current Rating
100A
Max Operating Temperature
100°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
520V
Mount
Chassis Mount, Chassis
Number of Phases
3
Operating Frequency
0 to 60Hz
Packaging
Tray
Ratings
IP20
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FN 3270
Termination
Terminal Block
Voltage Rating (AC)
520V
Compliance
RoHS
Compliant
Datasheet
Schaffner FN3270H-100-35 Datasheet
Download the complete datasheet for Schaffner FN3270H-100-35 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

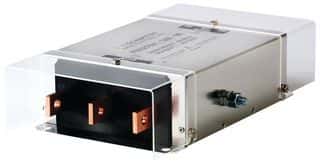

Product Images
