FrequencyDC to 60 Hz
Current25A
Current Rating25A
MountingChassis Mount, Chassis, Flanges
Quick Jump:
Technical Specifications
Schaffner FN3280H-25-33 technical specifications.
General
Current
25A
Current Rating
25A
Depth
180mm
Height
115mm
Length
153mm
Max Current Rating
25A
Max Operating Temperature
100°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
520V
Mount
Chassis Mount, Chassis, Flanges
Operating Frequency
DC to 60 Hz
Packaging
Tray
Primary Type
AC
Radiation Hardening
No
Ratings
IP20
RoHS Compliant
Yes
Series
FN 3280
Termination
Terminal Block
Voltage Rating (AC)
480V
Width
153mm
Compliance
RoHS
Compliant
Datasheet
Schaffner FN3280H-25-33 Datasheet
Download the complete datasheet for Schaffner FN3280H-25-33 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

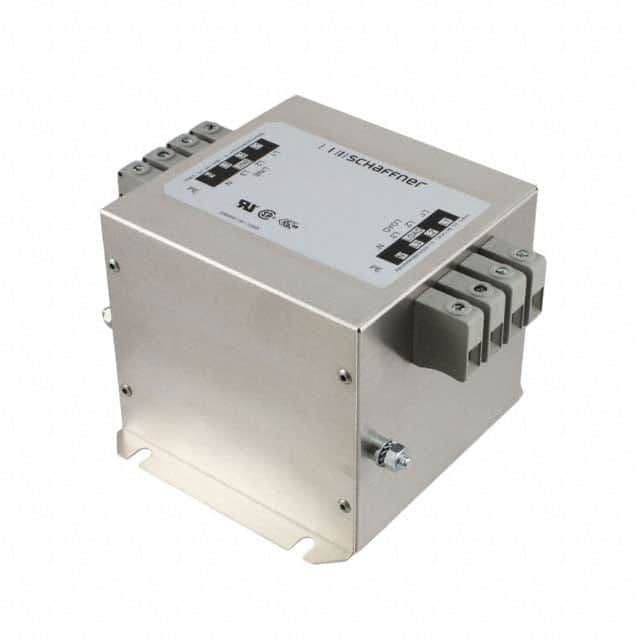

Product Images
