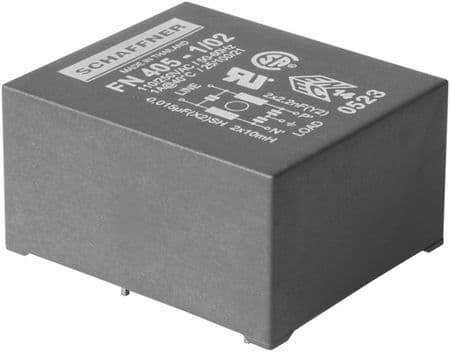

AC EMI/RFI filter with 1A current rating and 250V AC maximum voltage. Features 15nF capacitance, 10mH inductance, and operates from 0 to 400 Hz. Through-hole PCB mount with PC pin termination. Compliant with UL, CSA, ENEC, and RoHS standards. Operating temperature range of -25°C to 100°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schaffner FN405-1-02 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, ENEC |
| Capacitance | 15nF |
| Current | 1A |
| Current Rating | 1A |
| Depth | 31mm |
| Frequency | 400Hz |
| Height | 19.5mm |
| Inductance | 10mH |
| Lead Length | 7mm |
| Leakage Current | 373uA |
| Length | 36mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole, PCB |
| Operating Frequency | 0 to 400 Hz |
| Package Quantity | 25 |
| Packaging | Tray |
| Primary Type | AC |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FN 405 |
| Termination | PC Pins |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 36mm |
| RoHS | Compliant |
