Radial power line filter featuring 4.4mH inductance with a 50% tolerance, designed for general-purpose EMI/RFI suppression. This two-line filter operates with a maximum current rating of 600mA and a voltage rating of 250V AC. It offers a DC resistance of 385mR and a wide operating temperature range from -40°C to 125°C. The through-hole component has a 10mm lead pitch and is supplied in a tray package.
PackageRadial
Current Rating600mA
MountingThrough Hole
Inductance4.4mH
Quick Jump:
Technical Specifications
Schaffner RN102-0.6-02 technical specifications.
General
Package/Case
Radial
Current Rating
600mA
DC Current
600mA
DC Resistance (DCR)
385mR
Depth
14.3mm
Height
9.3mm
Inductance
4.4mH
Lead Pitch
10mm
Lead/Base Style
Pin
Length
14mm
Max Current Rating
600mA
Max DC Current
600mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Lines
2
Package Quantity
40
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Self Resonant Frequency
1kHz
Series
RN
Shielding
Unshielded
Termination
Radial
Test Frequency
10kHz
Tolerance
50%
Voltage Rating (AC)
250V
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Schaffner RN102-0.6-02 Datasheet
Download the complete datasheet for Schaffner RN102-0.6-02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

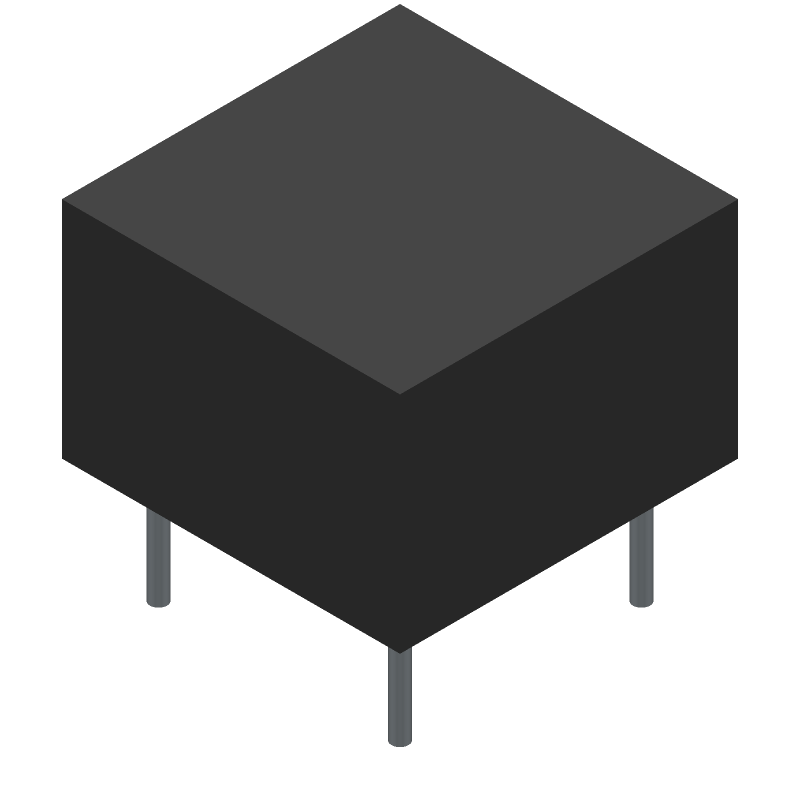

Product Images
