This relay is designed for power applications, with a coil power rating of 2.5W and a coil resistance of 21kΩ. It can handle a switching voltage of up to 300V and has a contact current rating of 30A. The relay is constructed with silver contacts and has a termination type of quick connect. It is suitable for use in temperatures ranging from -20°C to 55°C and is compliant with RoHS regulations.
Current Rating30A
MountingPanel, DIN Rail
Quick Jump:
Technical Specifications
Schneider 725AXXBC3ML-240A technical specifications.
General
| Application(s) | POWER |
| Coil Power | 2.5W |
| Coil Resistance | 21kR |
| Coil Voltage (AC) | 240V |
| Contact Current Rating | 30A |
| Contact Material | Silver |
| Current Rating | 30A |
| Depth | 33.1mm |
| Height | 39.4mm |
| Length | 67.7mm |
| Life (Hours) | 6000Hour |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -20°C |
| Mount | Panel, DIN Rail |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Switching Voltage | 300V |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Width | 33.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Schneider 725AXXBC3ML-240A Datasheet
Download the complete datasheet for Schneider 725AXXBC3ML-240A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

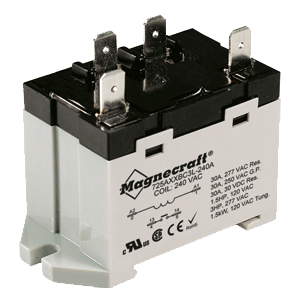

Product Images
