Voltage Rating690V
Current Rating32A
MountingDIN Rail
Power15kW
Quick Jump:
Technical Specifications
Schneider GV2P32 technical specifications.
General
Actuator Type
Rotary
Current Rating
32A
Depth
97mm
Height
89mm
Length
97mm
Max Current Rating
32A
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Mount
DIN Rail
Number of Poles
3
Output Power
15kW
Reach SVHC Compliant
No
Series
GV2
Termination
Screw
Voltage Rating
690V
Voltage Rating (AC)
690V
Weight
0.35kg
Width
45mm
Compliance
RoHS
Compliant
Datasheet
Schneider GV2P32 Datasheet
Download the complete datasheet for Schneider GV2P32 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

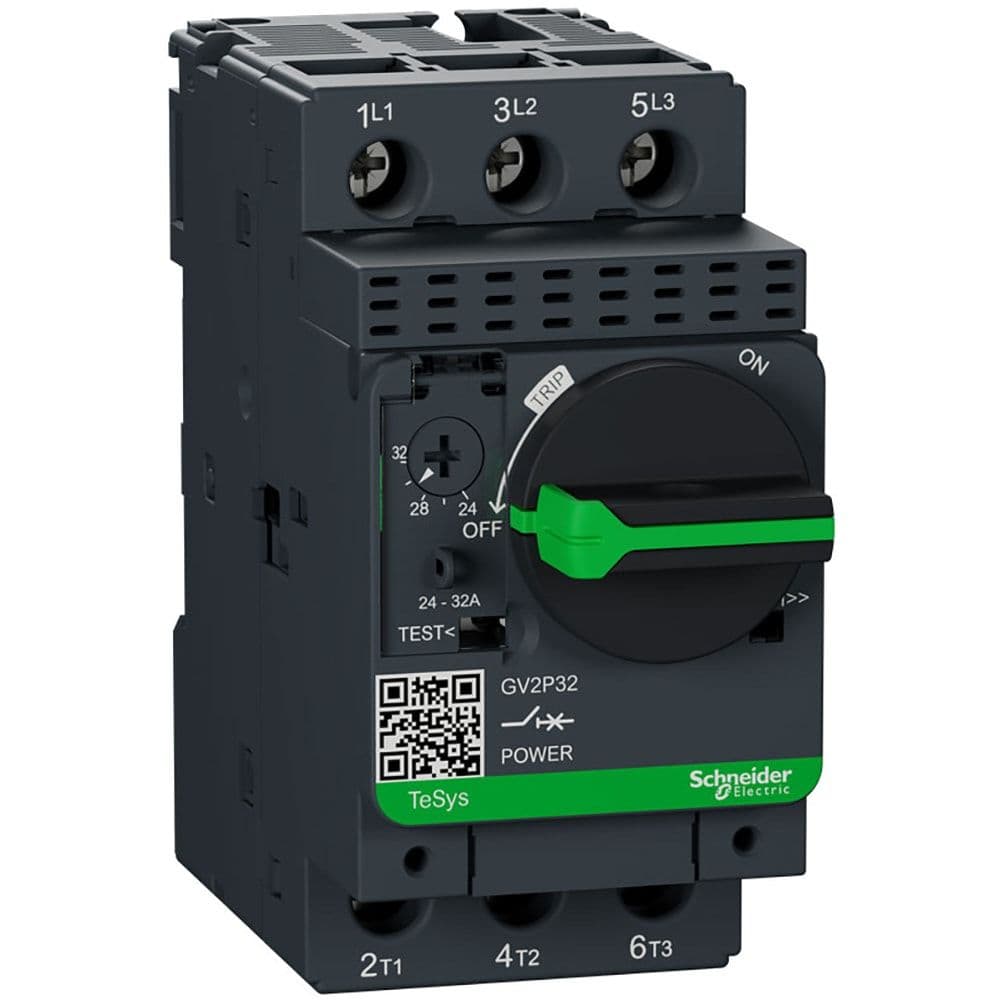

Product Images
