This 4-pole relay has a contact current rating of 80A and can operate at a maximum temperature of 60°C. It is designed for use with an operating supply voltage of 600V and can withstand a coil voltage of 230V AC. The relay measures 120mm in depth, 122mm in length, and 70mm in width. It is terminated with screws and has a throw configuration of 4P.
Quick Jump:
Technical Specifications
Schneider LC1DT80AP7 technical specifications.
General
| Coil Voltage (AC) | 230V |
| Contact Current Rating | 80A |
| Depth | 120mm |
| Length | 122mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -5°C |
| Number of Poles | 4 |
| Operating Supply Voltage | 600V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Screw |
| Throw Configuration | 4P |
| Width | 70mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Schneider LC1DT80AP7 Datasheet
Download the complete datasheet for Schneider LC1DT80AP7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

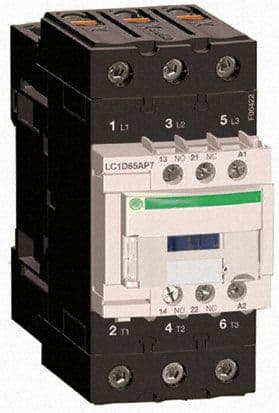

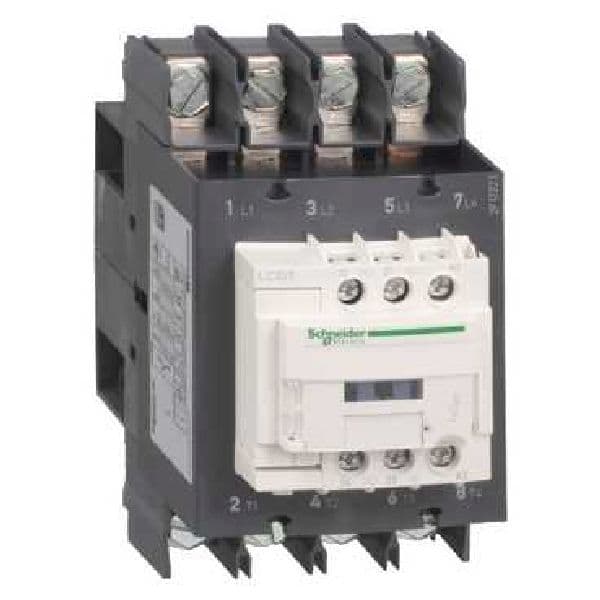

Product Images
