Technical Specifications
Schneider LRD08 technical specifications.
General
| Contact Current Rating | 4A |
| Current Rating | 4A |
| Depth | 66mm |
| Length | 123mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Number of Circuits | 1 |
| Number of Poles | 3 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Screw |
| Throw Configuration | 3P |
| Voltage Rating | 690V |
| Width | 45mm |
Compliance
| RoHS | Compliant |
Datasheet
Schneider LRD08 Datasheet
Download the complete datasheet for Schneider LRD08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

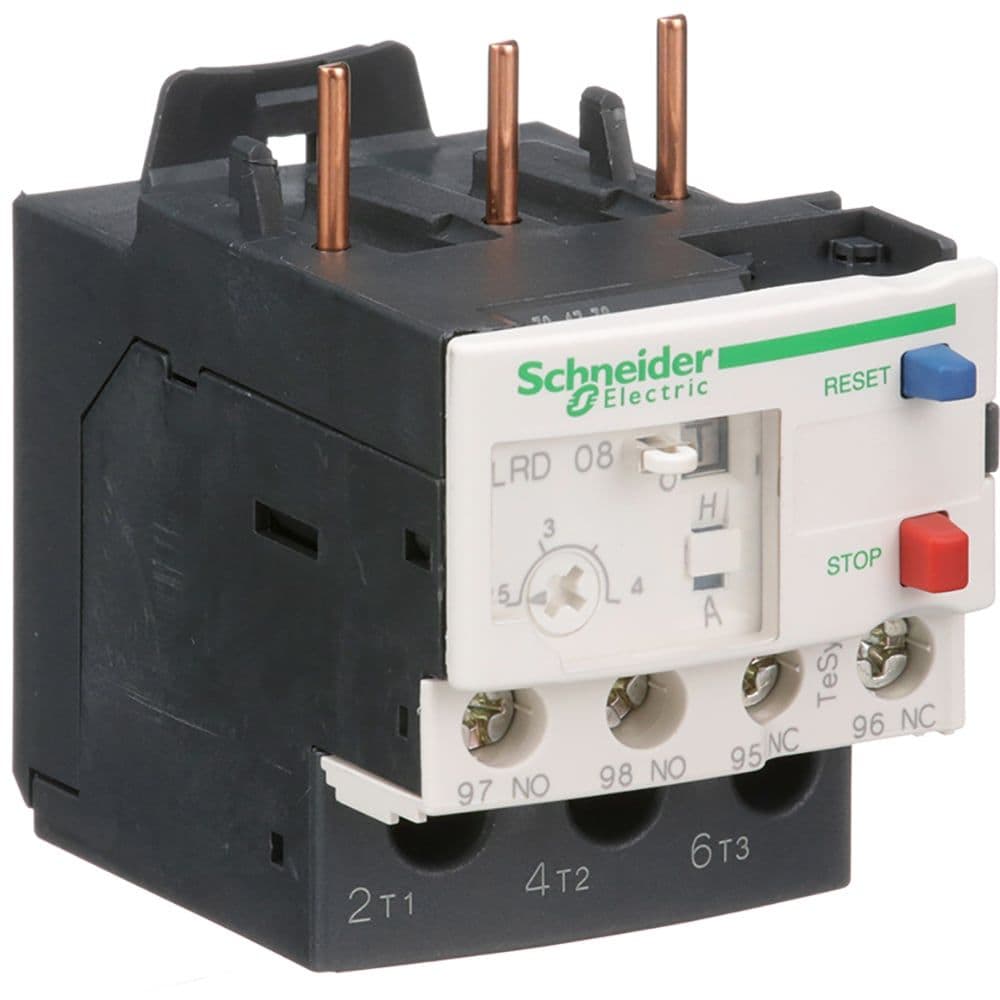

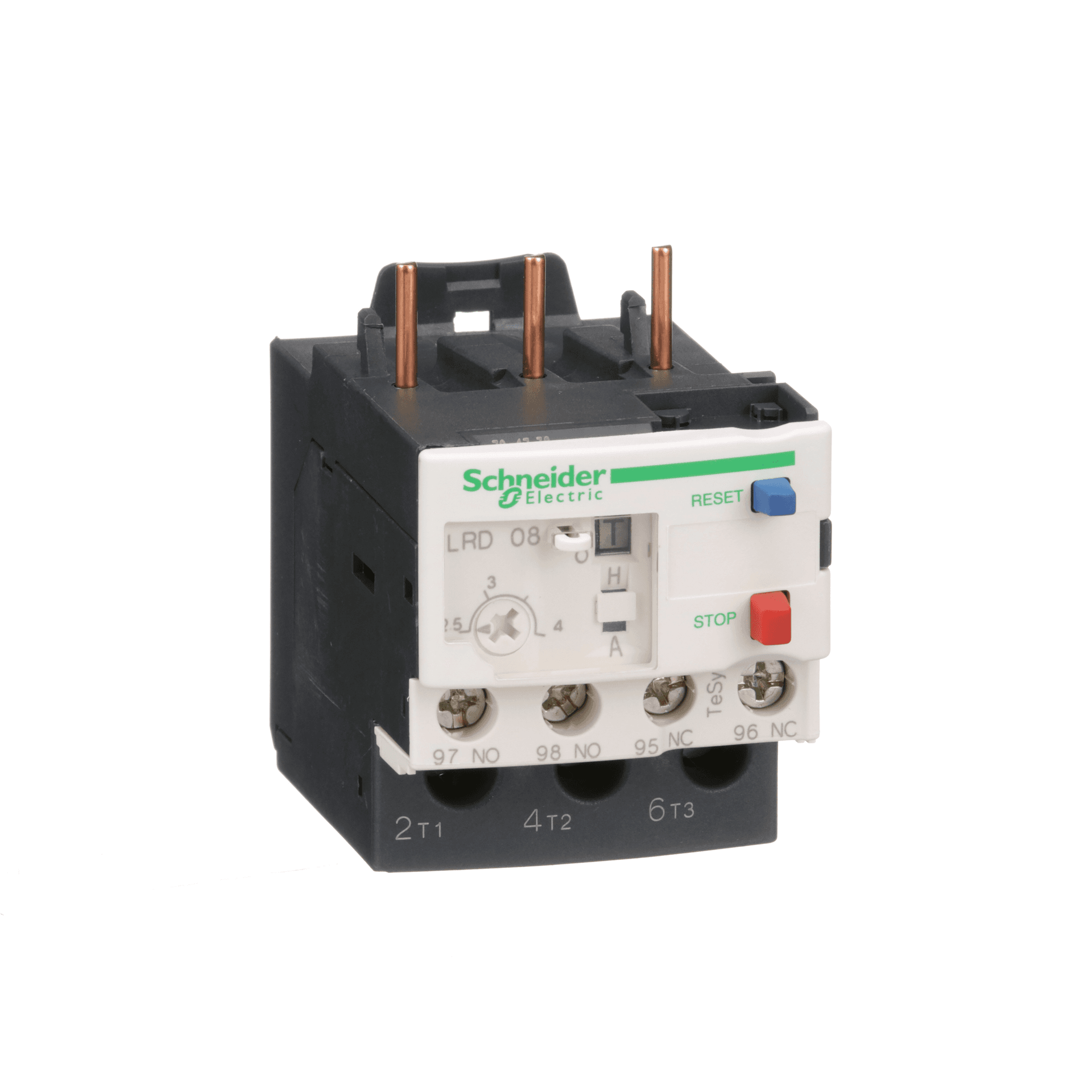

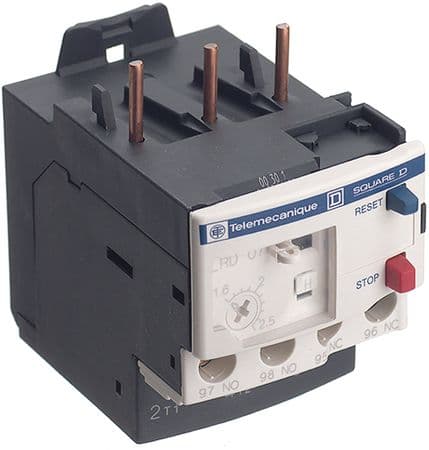

Product Images
