The TeSys D Series 3P relay from Schneider has a contact current rating of 24A and a voltage rating of 690V. It operates within a temperature range of -20°C to 60°C. The relay has a screw termination and a 3P throw configuration. It is not RoHS compliant.
Voltage Rating690V
Quick Jump:
Technical Specifications
Schneider LRD22 technical specifications.
General
| Contact Current Rating | 24A |
| Depth | 66mm |
| Length | 123mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Number of Circuits | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | TeSys D Series |
| Termination | Screw |
| Throw Configuration | 3P |
| Voltage Rating | 690V |
| Width | 45mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Schneider LRD22 Datasheet
Download the complete datasheet for Schneider LRD22 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

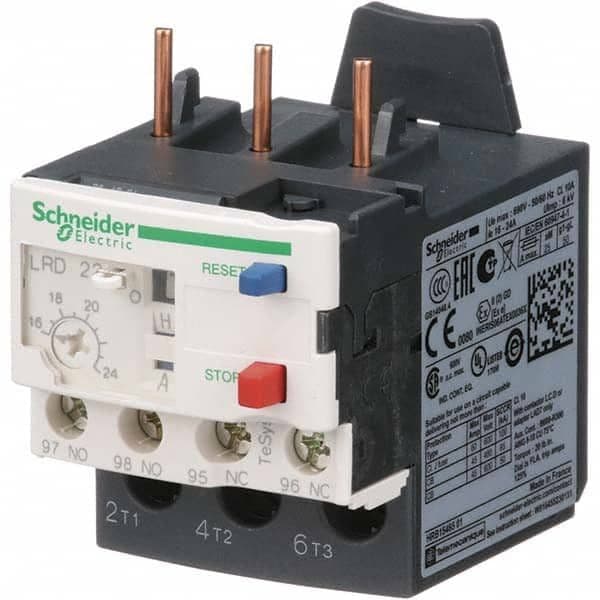

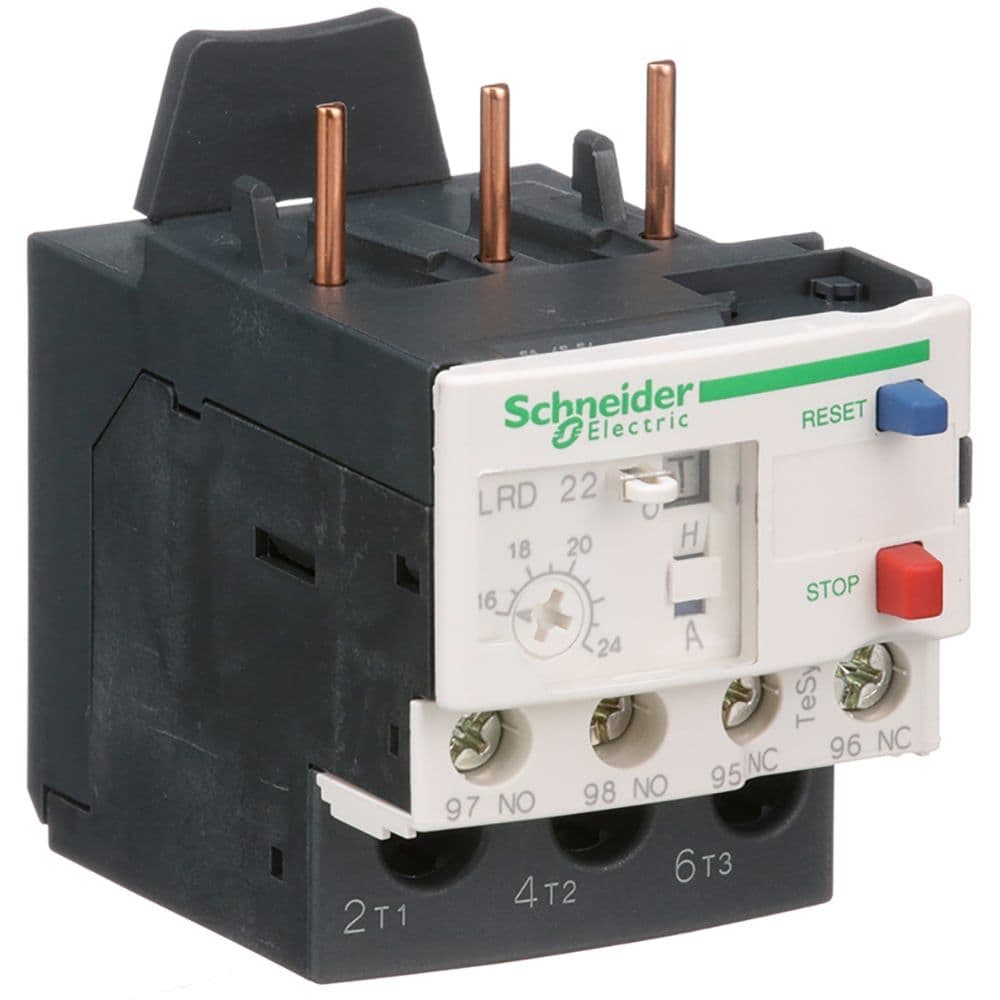

Product Images
