Miniature fast-acting fuse, 800mA current rating at 250V AC, featuring a 5 x 20mm ceramic cartridge body. Designed for holder mounting with nickel-plated clip terminations, this fuse operates within a temperature range of -55°C to 125°C and offers a maximum power dissipation of 2.5W. It is RoHS compliant and carries VDE, cURus, CCC, and KC approvals.
Current800mA
Voltage Rating250V
Current Rating800mA
MountingHolder, Clip
Quick Jump:
Technical Specifications
Schurter 0001.1003 technical specifications.
General
Approvals
VDE, cURus, CCC, KC
Body Diameter
5mm
Body Material
Ceramic
Contact Plating
Nickel
Current
800mA
Current Rating
800mA
Diameter
5mm
Fuse Current
800mA
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
2.5W
Max Voltage Rating (AC)
250V
Mount
Holder, Clip
Outside Diameter
5.2mm
Package Quantity
10
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SP 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
Weight
0.041623oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.1003 Datasheet
Download the complete datasheet for Schurter 0001.1003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

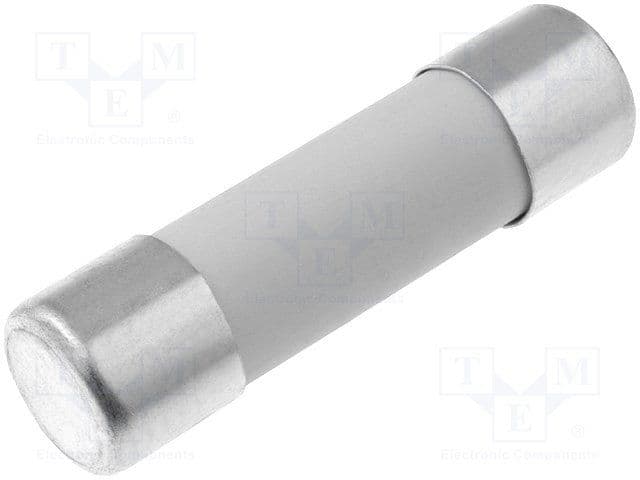

Product Images
