Surface mount resettable fuse with a 1.25A current rating and 250V AC/DC voltage rating. Features a 5mm x 20mm ceramic body with nickel-plated clip terminations, suitable for holder or clip mounting. Operates across a -55°C to 125°C temperature range with a maximum power dissipation of 4W. This RoHS compliant component is designed for overcurrent protection and holds IEC and EN approvals.
Current1.25A
Voltage Rating250V
Current Rating1.25A
MountingHolder, Clip
Quick Jump:
Technical Specifications
Schurter 0001.1005 technical specifications.
General
Approvals
IEC, EN
Body Material
Ceramic
Contact Plating
Nickel
Current
1.25A
Current Rating
1.25A
Diameter
5mm
Fuse Current
1.25A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
4W
Max Voltage Rating (AC)
250V
Mount
Holder, Clip
Package Quantity
10
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SP 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.041623oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.1005 Datasheet
Download the complete datasheet for Schurter 0001.1005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

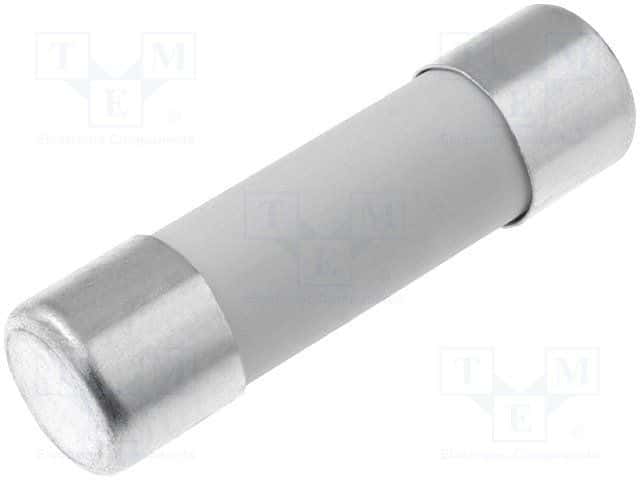

Product Images
