Miniature fast-acting fuse, 1.6A current rating at 250V AC/DC. Features a 5 x 20mm ceramic cartridge body with nickel-plated clip terminations. Operating temperature range from -55°C to 125°C, with a maximum power dissipation of 4W. This fuse is RoHS compliant and suitable for holder or clip mounting.
Current1.6A
Voltage Rating250V
Current Rating1.6A
MountingHolder, Clip
Quick Jump:
Technical Specifications
Schurter 0001.1006 technical specifications.
General
Approvals
IEC, EN
Body Material
Ceramic
Contact Plating
Nickel
Current
1.6A
Current Rating
1.6A
Diameter
5mm
Fuse Current
1.6A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
4W
Max Voltage Rating (AC)
250V
Mount
Holder, Clip
Package Quantity
10
Packaging
Bulk
Power Dissipation
4W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SP 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.041623oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.1006 Datasheet
Download the complete datasheet for Schurter 0001.1006 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

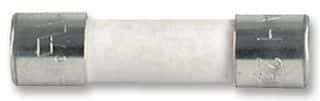

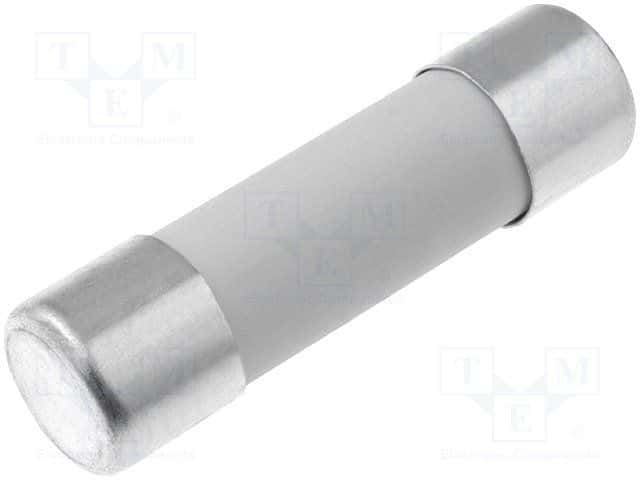

Product Images
