Surface mount & leaded PTC resettable fuse, 3.15A current rating, 250V AC/DC voltage rating. Features a 5mm x 20mm fuse size with ceramic body and nickel plated contacts. Operates within a temperature range of -55°C to 125°C, with a maximum power dissipation of 4W. This RoHS compliant component is designed for holder or clip mounting.
Current3.15A
Voltage Rating250V
Current Rating3.15A
MountingHolder, Clip
Quick Jump:
Technical Specifications
Schurter 0001.1009 technical specifications.
General
Approvals
IEC, EN
Body Material
Ceramic
Contact Plating
Nickel
Current
3.15A
Current Rating
3.15A
Diameter
5mm
Fuse Current
3.15A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
4W
Max Voltage Rating (AC)
250V
Mount
Holder, Clip
Package Quantity
10
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SP 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.039507oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.1009 Datasheet
Download the complete datasheet for Schurter 0001.1009 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

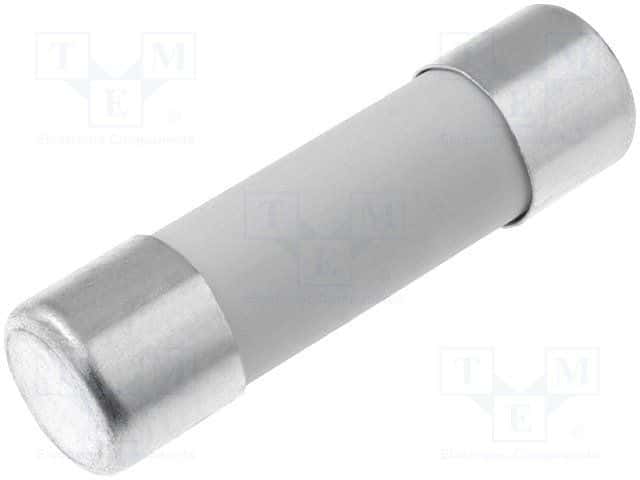

Product Images
