Very fast-acting electric fuse, 6.3A current rating, designed for 250VAC and 250VDC applications. Features a 5x20mm ceramic body with nickel-plated clip terminations, suitable for inline or holder mounting. Offers a high interrupting rating of 1500A and operates across a temperature range of -55°C to 125°C, with a maximum power dissipation of 4W. This RoHS compliant component is approved to IEC and EN standards.
Current6.3A
Voltage Rating250V
Current Rating6.3A
MountingHolder, Clip
Quick Jump:
Technical Specifications
Schurter 0001.1012 technical specifications.
General
Approvals
IEC, EN
Body Material
Ceramic
Contact Plating
Nickel
Current
6.3A
Current Rating
6.3A
Diameter
5mm
Fuse Current
6.3A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
4W
Max Voltage Rating (AC)
250V
Mount
Holder, Clip
Package Quantity
10
Packaging
Box
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SP 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.03986oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.1012 Datasheet
Download the complete datasheet for Schurter 0001.1012 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

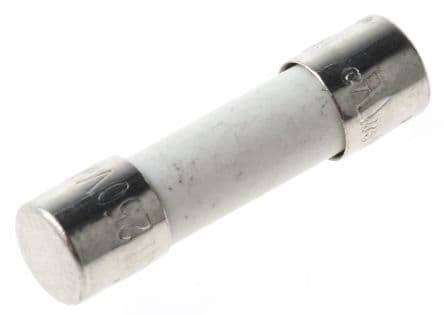

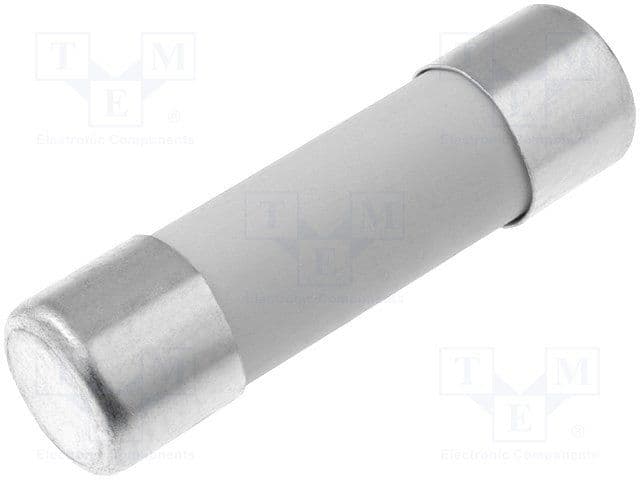

Product Images
