Time delay PTC resettable fuse, 1A current rating, 250V AC maximum voltage rating, and 300V DC rated voltage. Features a ceramic body with nickel contact plating, a 5mm x 20mm fuse size (5.2mm diameter, 20mm length), and a maximum power dissipation of 700mW. Operates within a temperature range of -55°C to 125°C. Suitable for holder, surface mount, and clip mounting. RoHS compliant and lead-free.
Current1A
Voltage Rating250V
Current Rating1A
MountingHolder, Surface Mount, Clip
Quick Jump:
Technical Specifications
Schurter 0001.2504 technical specifications.
General
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Contact Plating
Nickel
Current
1A
Current Rating
1A
Diameter
5.2mm
Fuse Current
1A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
700mW
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
300V
Mount
Holder, Surface Mount, Clip
Package Quantity
10
Packaging
Bulk
Power Dissipation
700mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SPT 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
300V
Weight
0.039507oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.2504 Datasheet
Download the complete datasheet for Schurter 0001.2504 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

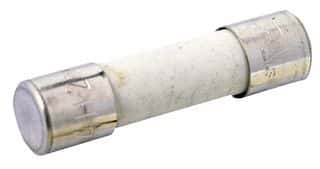

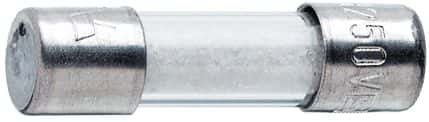

Product Images
