Time-delay electric fuse, 1.25A current rating, 250VAC and 300VDC voltage ratings. Features a 1500A interrupting rating, ceramic body, and nickel-plated contacts. This 5x20mm fuse is designed for inline or holder mounting and is RoHS compliant. Approvals include VDE, cURus, CCC, PSE, KC, IEC, and EN.
Current1.25A
Voltage Rating250V
Current Rating1.25A
MountingHolder, Surface Mount, Clip
Quick Jump:
Technical Specifications
Schurter 0001.2505 technical specifications.
General
Approvals
VDE, cURus, CCC, PSE, KC, IEC, EN
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Contact Plating
Nickel
Current
1.25A
Current Rating
1.25A
Diameter
5mm
Fuse Current
1.25A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
700mW
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
300V
Mount
Holder, Surface Mount, Clip
Package Quantity
10
Packaging
Bulk
Power Dissipation
700mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SPT 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
300V
Weight
0.039507oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.2505 Datasheet
Download the complete datasheet for Schurter 0001.2505 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

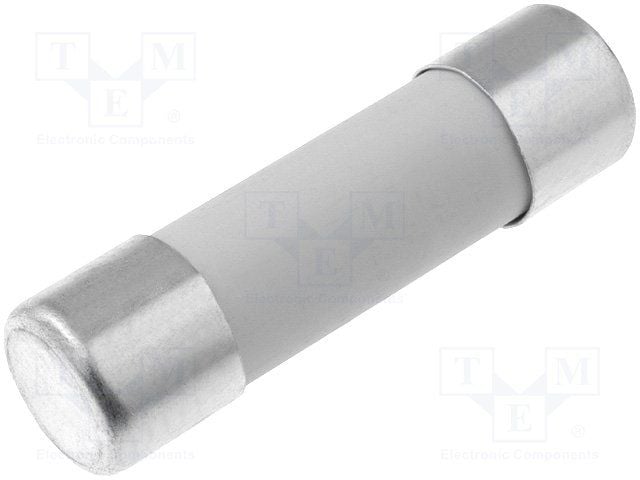

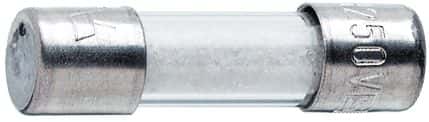

Product Images
