Time-delay electric fuse, 3.15A current rating, 250VAC/300VDC voltage rating, with a 1500A interrupting rating. Features a 5x20mm ceramic body, nickel-plated contacts, and a time-lag blow characteristic. Suitable for inline or holder mounting, operating within a -55°C to +125°C temperature range. RoHS compliant with IEC and EN approvals.
Current3.15A
Storage22.5mm
Voltage Rating250V
Current Rating3.15A
Quick Jump:
Technical Specifications
Schurter 0001.2509 technical specifications.
General
Approvals
IEC, EN
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Contact Plating
Nickel
Current
3.15A
Current Rating
3.15A
Diameter
5mm
Fuse Current
3.15A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.1W
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
300V
Mount
Holder, Surface Mount, Clip
Package Quantity
10
Packaging
Bulk
Power Dissipation
1.1W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SPT 5x20
Size
22.5mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
300V
Weight
0.03986oz
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.2509 Datasheet
Download the complete datasheet for Schurter 0001.2509 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

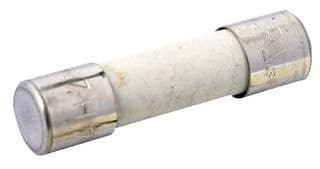

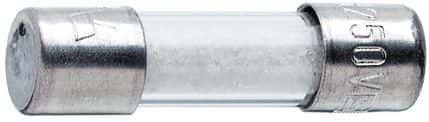

Product Images
