Time-delay electric fuse, 5A, 250VAC/150VDC rated voltage, with a 1500A interrupting rating. Features a 5x20mm ceramic body with nickel-plated contacts, suitable for inline or holder mounting. Operates across a temperature range of -55°C to 125°C with a maximum power dissipation of 1.5W. RoHS compliant.
Current5A
Voltage Rating250V
Current Rating5A
MountingHolder, Surface Mount, Clip
Quick Jump:
Technical Specifications
Schurter 0001.2511 technical specifications.
General
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Contact Plating
Nickel
Current
5A
Current Rating
5A
Diameter
5mm
Fuse Current
5A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.5W
Max Voltage Rating (AC)
250V
Mount
Holder, Surface Mount, Clip
Package Quantity
10
Packaging
Bulk
Power Dissipation
1.5W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SPT 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
150V
Weight
0.040212oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.2511 Datasheet
Download the complete datasheet for Schurter 0001.2511 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

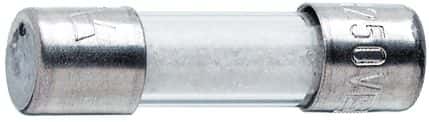

Product Images
