Miniature slow-blow fuse with a 10A current rating and 250V AC maximum voltage rating. Features a ceramic body, nickel-plated contacts, and a 5 x 20mm cartridge size. Designed for holder mounting, this fuse operates within a temperature range of -55°C to 125°C and has a maximum power dissipation of 4W. RoHS compliant and lead-free.
Current10A
Storage20mm
Voltage Rating250V
Current Rating10A
Quick Jump:
Technical Specifications
Schurter 0001.2514 technical specifications.
General
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Contact Plating
Nickel
Current
10A
Current Rating
10A
Diameter
5mm
Fuse Current
10A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
4W
Max Voltage Rating (AC)
250V
Mount
Holder, Surface Mount
Package Quantity
10
Packaging
Box
Power Dissipation
4W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SPT 5x20
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
150V
Weight
0.040565oz
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.2514 Datasheet
Download the complete datasheet for Schurter 0001.2514 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

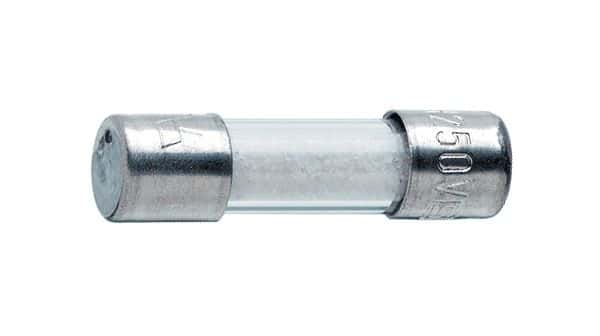

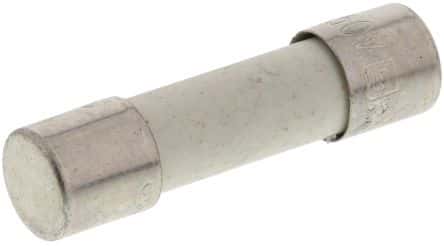

Product Images
