Panel mount fuse holder for 5mm x 20mm fuses, rated for 250V AC/DC and 10A. Features a thermoset body with copper alloy, tin-plated contacts. Designed for single-circuit, single-pole applications with lug termination. Operating temperature range of -40°C to 85°C, with UL, CSA, and IP67 approvals. Illuminated indicator for status.
Voltage250V
Voltage Rating250V
Current Rating10A
MountingPanel
Quick Jump:
Technical Specifications
Schurter 0031.1351 technical specifications.
General
Approvals
UL, CSA
Body Material
Thermoset
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
10A
Diameter
15mm
Flammability Rating
UL94 HB
Fuse Current
10A
Fuse Size
5mm x 20mm
Illumination Type
Illuminated
Lead Free
Lead Free
Length
4.6mm
Material
Tin, Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Circuits
1
Number of Poles
1
Package Quantity
100
Packaging
Bulk
Ratings
IP67
Reach SVHC Compliant
No
Series
FIN
Termination
Lug
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.250445oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.1351 Datasheet
Download the complete datasheet for Schurter 0031.1351 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

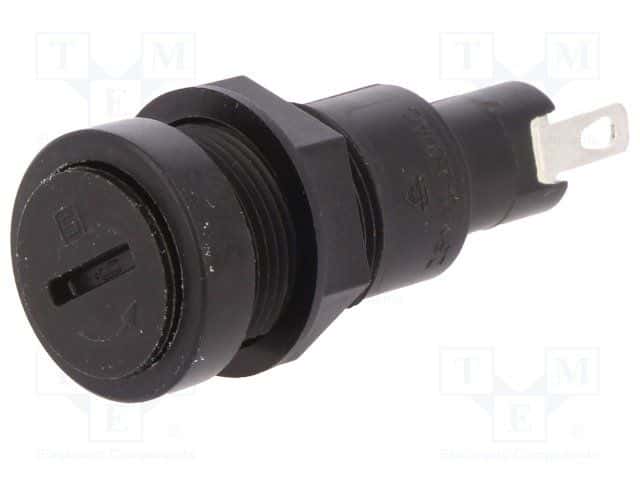

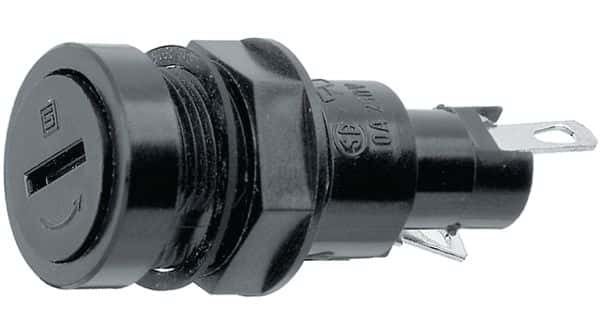

Product Images
