Illuminated, 1-pole, 1-circuit panel mount fuse holder for 5x20mm or 6.3x32mm fuses. Features a 10A current rating and 600V AC/DC voltage rating. Constructed with a thermoset body and copper alloy, tin-plated contacts. Rated IP40 and UL94 V-0 flammability. Operating temperature range of -40°C to 85°C.
Voltage500V
Voltage Rating500V
Current Rating10A
MountingPanel
Quick Jump:
Technical Specifications
Schurter 0031.1631 technical specifications.
General
Approvals
UL, CSA, IEC, EN, SEMKO
Body Material
Thermoset
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
10A
Diameter
19mm
Flammability Rating
UL94 V-0
Fuse Current
10A
Fuse Size
5x20mm or 6.3x32mm
Illumination Type
Illuminated
Lead Free
Lead Free
Material
Tin, Thermoset, Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Circuits
1
Number of Poles
1
Package Quantity
50
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
No
Series
FEC
Termination
Solder
Voltage
500V
Voltage Rating
500V
Voltage Rating (AC)
600V
DC Rated Voltage
600V
Weight
0.320993oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.1631 Datasheet
Download the complete datasheet for Schurter 0031.1631 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

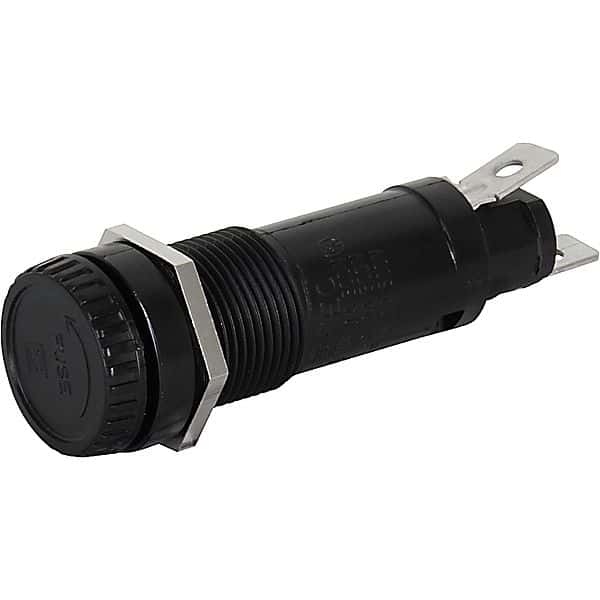

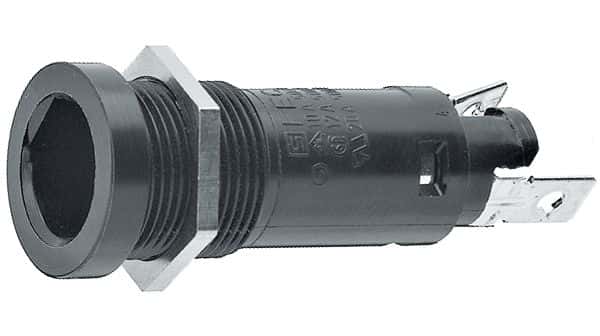

Product Images
