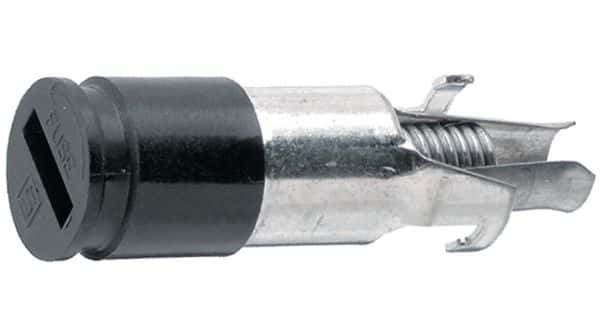

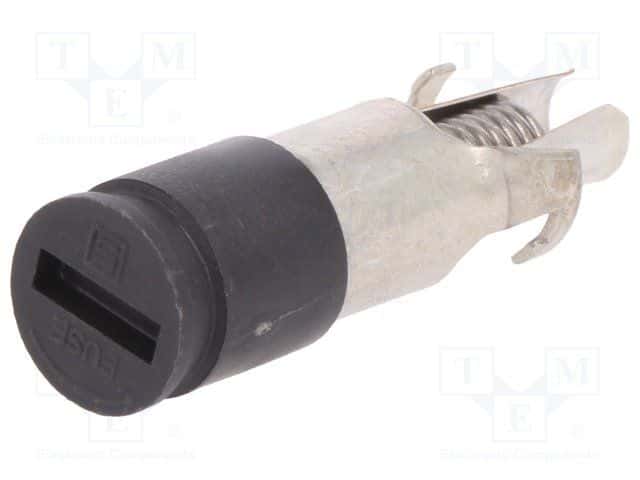

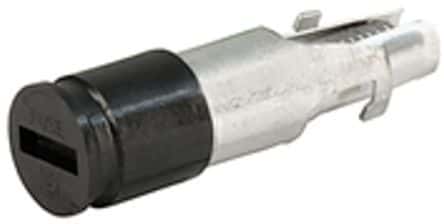

16A, 500VAC/600VDC rated fuse holder for 5x20mm fuses. Features quick connect termination and a single pole configuration. Constructed from black thermoplastic with tin-plated contacts, it offers a wide operating temperature range of -40°C to 85°C. Panel mountable via through-hole, this component is IP40 rated and holds UL, CSA, VDE, and IEC approvals.
Voltage Rating600V
Current Rating16A
MountingThrough Hole
Quick Jump:
Technical Specifications
Schurter 0031.1663 technical specifications.
General
Approvals
UL, CSA, VDE, IEC
Body Material
Thermoplastic
Color
Black
Contact Plating
Tin
Current Rating
16A
Fuse Current
10A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Material
Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Poles
1
Package Quantity
100
Packaging
Box
Ratings
IP40
Reach SVHC Compliant
No
Series
FAC, FAU, FEU, FEU (Med)
Termination
Quick Connect
Voltage Rating
600V
Voltage Rating (AC)
500V
DC Rated Voltage
600V
Weight
0.116404oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.1663 Datasheet
Download the complete datasheet for Schurter 0031.1663 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
