Panel mount fuse holder with solder lug termination, rated for 20A and 250VAC. Features a thermoplastic body in black, copper alloy contacts with tin plating, and supports 5x20mm or 6.3x32mm fuses. Operating temperature range is -40°C to 85°C, with IP40 rating. Approvals include UL, CSA, and IEC.
Voltage250V
Voltage Rating250V
Current Rating20A
MountingPanel
Quick Jump:
Technical Specifications
Schurter 0031.1673 technical specifications.
General
Approvals
UL, CSA, IEC
Body Material
Thermoplastic
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
20A
Fuse Current
10A
Fuse Size
5x20mm or 6.3x32mm
Illumination Type
Illuminated
Lead Free
Contains Lead
Material
Tin, Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Circuits
1
Number of Poles
1
Package Quantity
100
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
No
Series
FEU
Termination
Solder
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.172842oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.1673 Datasheet
Download the complete datasheet for Schurter 0031.1673 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

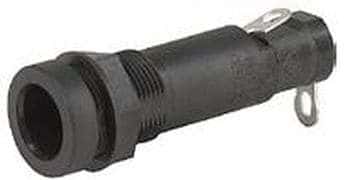

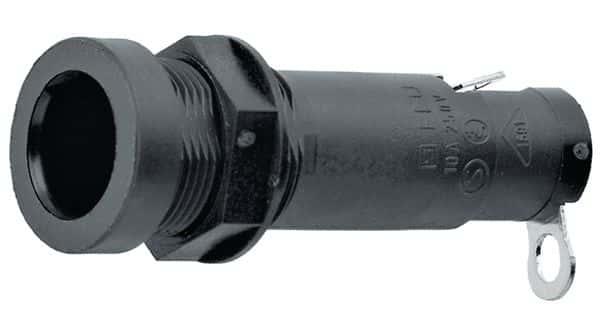

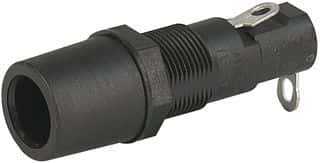

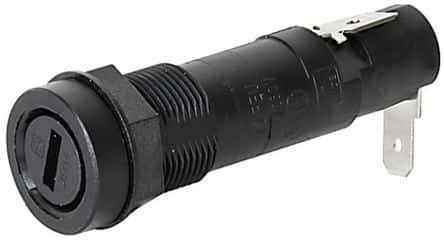

Product Images
