Panel mount fuseholder with quick connect terminals, rated for 600V and 30A. Accommodates 5x20mm or 6.3x32mm fuses, featuring a thermoset body with UL94 V-0 flammability. Operates from -40°C to 85°C, with copper alloy contacts plated in tin. UL and CSA approved for general circuit protection applications.
Voltage600V
Voltage Rating600V
Current Rating30A
MountingPanel
Quick Jump:
Technical Specifications
Schurter 0031.2308 technical specifications.
General
Approvals
UL, CSA
Body Material
Thermoset
Color
Black
Contact Material
Copper Alloy, Tin, Copper
Contact Plating
Tin
Current Rating
30A
Flammability Rating
UL94 V-0
Fuse Current
16A
Fuse Size
5x20mm or 6.3x32mm
Illumination Type
Illuminated
Lead Free
Lead Free
Length
62.9mm
Material
Copper, Tin
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Circuits
1
Number of Poles
1
Package Quantity
25
Packaging
Bulk
Reach SVHC Compliant
No
Series
FUL
Termination
Quick Connect
Voltage
600V
Voltage Rating
600V
Voltage Rating (AC)
250V
DC Rated Voltage
600V
Weight
0.705479oz
Width
22mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.2308 Datasheet
Download the complete datasheet for Schurter 0031.2308 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

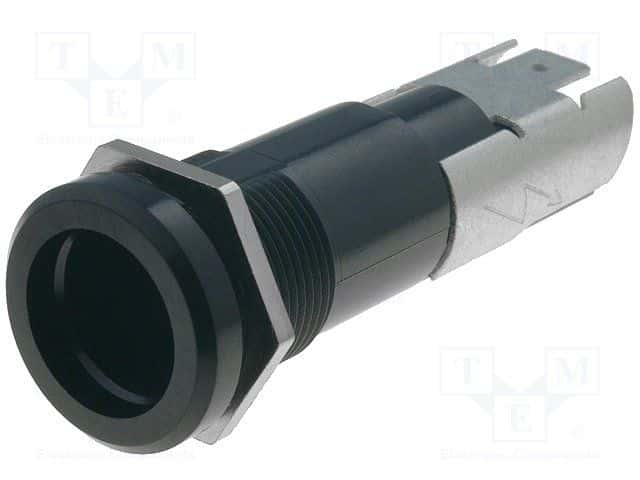

Product Images
