1-pole, 1-circuit carrier fuse for 5x20mm fuses, featuring quick connect termination and a through-hole mount. Rated for 600V DC and 500V AC, with a 30A current rating. Constructed with a thermoset body and copper contacts with tin plating, it offers IP67 ingress protection. Operating temperature range is -40°C to 85°C, with UL94 V-0 flammability.
Voltage Rating600V
Current Rating30A
MountingThrough Hole
Quick Jump:
Technical Specifications
Schurter 0031.2322 technical specifications.
General
Approvals
UL, CSA
Body Material
Thermoset
Color
Black
Contact Material
Copper
Contact Plating
Tin
Current Rating
30A
Flammability Rating
UL94 V-0
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
62.9mm
Material
Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Circuits
1
Number of Poles
1
Package Quantity
25
Packaging
Bulk
Ratings
IP67
Series
FUL
Termination
Quick Connect
Voltage Rating
600V
Voltage Rating (AC)
500V
DC Rated Voltage
600V
Weight
0.536164oz
Width
22mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.2322 Datasheet
Download the complete datasheet for Schurter 0031.2322 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

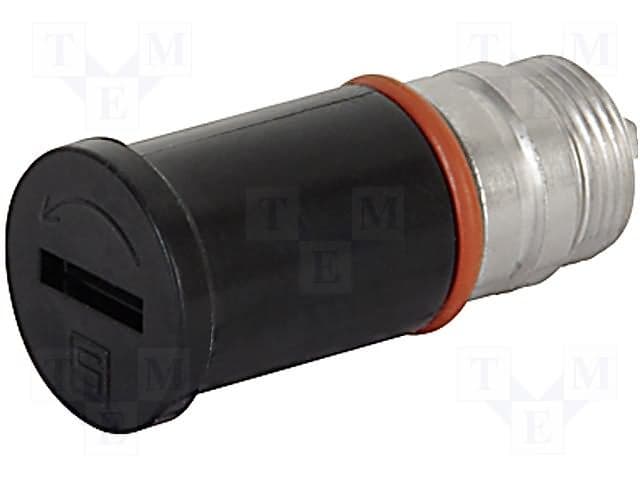

Product Images
