Illuminated fuse holder for 5mm x 20mm and 1/4" Dia x 1-1/4" L fuses, featuring a 500VAC/600VDC voltage rating and 30A current rating. Designed for PCB through-hole mounting with vertical orientation and PC pin termination. Constructed with a thermoset body and tin-plated copper alloy contacts, it offers a UL94 V-0 flammability rating and operates within a -40°C to 85°C temperature range. This RoHS compliant component is suitable for single-circuit, single-pole applications.
Voltage600V
Voltage Rating500V
Current Rating30A
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
Schurter 0031.2550 technical specifications.
General
Body Material
Thermoset
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
30A
Flammability Rating
UL94 V-0
Fuse Size
5mm x 20mm, 1/4" Dia x 1-1/4" L (6.35mm x 31.8mm)
Illumination Type
Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
PCB, Through Hole
Number of Circuits
1
Number of Poles
1
Orientation
Vertical
Package Quantity
25
Packaging
Bulk
RoHS Compliant
Yes
Series
FUA
Termination
PC Pin
Voltage
600V
Voltage Rating
500V
Voltage Rating (AC)
500V
DC Rated Voltage
600V
Weight
0.532637oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.2550 Datasheet
Download the complete datasheet for Schurter 0031.2550 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

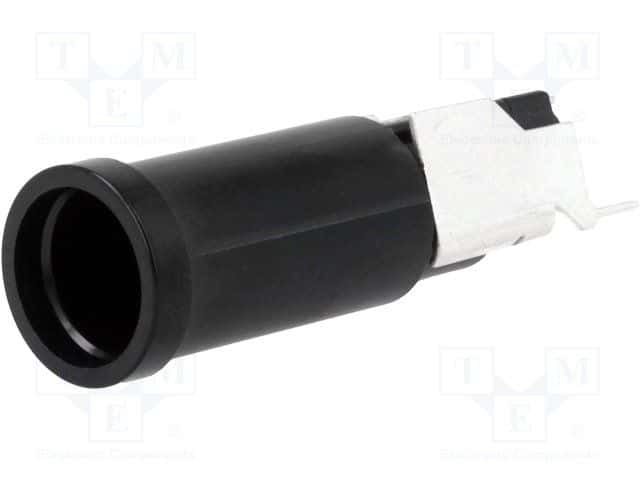

Product Images
