Illuminated fuse holder for 5mm x 20mm fuses, rated for 6.3A at 250VAC. Features a thermoplastic body with copper alloy, tin-plated contacts and PC pin termination for through-hole PCB mounting. Operates across a wide temperature range of -40°C to 85°C and boasts a UL94 V-0 flammability rating. This single-pole, single-circuit component offers IP40 protection.
Voltage250V
Voltage Rating250V
Current Rating6.3A
MountingHorizontal, PCB, Through Hole
Quick Jump:
Technical Specifications
Schurter 0031.3501 technical specifications.
General
Body Material
Thermoplastic
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
6.3A
Flammability Rating
UL94 V-0
Fuse Current
6.3A
Fuse Size
5mm x 20mm
Height
10mm
Illumination Type
Illuminated
Lead Free
Lead Free
Length
31mm
Material
Tin, Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Horizontal, PCB, Through Hole
Number of Circuits
1
Number of Poles
1
Orientation
Horizontal
Package Quantity
100
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
No
Series
FAS
Termination
PC Pin
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.17637oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.3501 Datasheet
Download the complete datasheet for Schurter 0031.3501 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

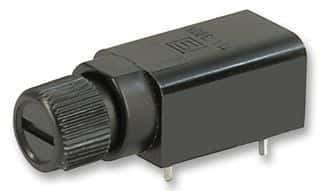

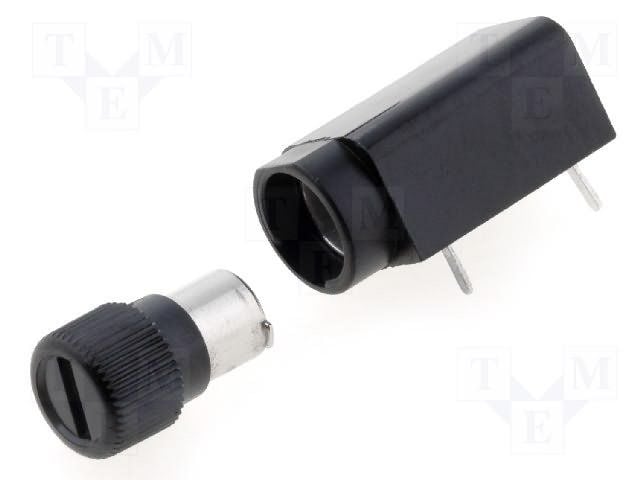

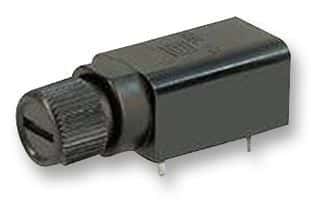

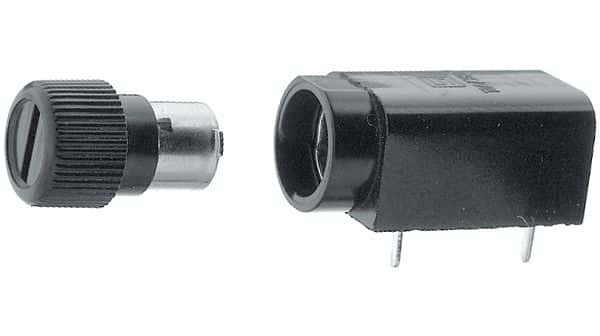

Product Images
