Panel mount fuse holder with solder lug termination, rated for 10A at 250VAC. Features a 1-pole, 1-circuit design compatible with 5mm x 20mm fuses. Constructed from black thermoplastic with copper alloy, tin-plated contacts, and a UL94 V-0 flammability rating. Operates within a -40°C to 85°C temperature range and offers IP40 protection. Approvals include UL and CSA.
Voltage250V
Voltage Rating250V
Current Rating10A
MountingPanel
Quick Jump:
Technical Specifications
Schurter 0031.3901 technical specifications.
General
Approvals
UL, CSA
Body Material
Thermoplastic
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
10A
Diameter
15mm
Flammability Rating
UL94 V-0
Fuse Current
10A
Fuse Size
5mm x 20mm
Illumination Type
Illuminated
Lead Free
Lead Free
Material
Tin, Thermoset, Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Circuits
1
Number of Poles
1
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
Series
FBS1
Termination
Solder
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.197534oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.3901 Datasheet
Download the complete datasheet for Schurter 0031.3901 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

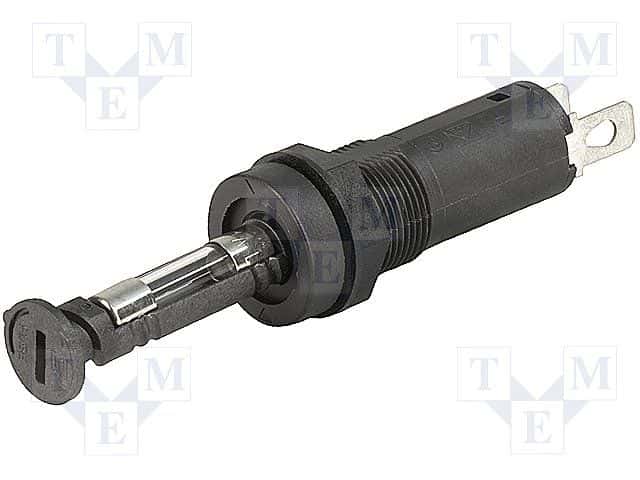

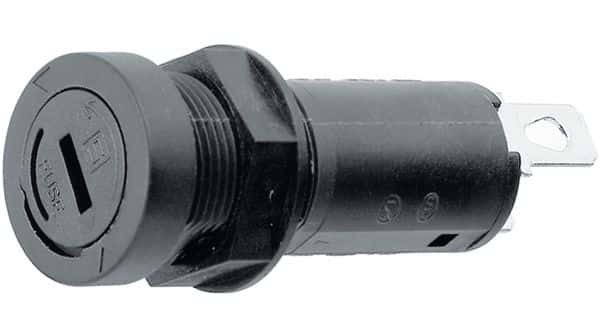

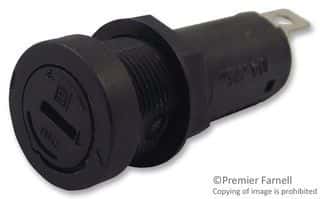

Product Images
