Illuminated fuse holder for 5mm x 20mm cartridge fuses, rated for 250V AC/DC and 10A. Features a thermoplastic body with UL94 V-0 flammability rating and tin-plated copper alloy contacts. Designed for panel mounting with solder termination and a single pole, single circuit configuration. Operates across a temperature range of -40°C to 85°C and offers IP40 protection.
Voltage250V
Voltage Rating250V
Current Rating10A
MountingPanel
Quick Jump:
Technical Specifications
Schurter 0031.3911 technical specifications.
General
Approvals
UL, CSA
Body Material
Thermoplastic
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
10A
Diameter
15mm
Flammability Rating
UL94 V-0
Fuse Size
5mm x 20mm
Illumination Type
Illuminated
Lead Free
Lead Free
Material
Tin, Thermoset
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Circuits
1
Number of Poles
1
Package Quantity
100
Packaging
Bulk
Ratings
IP40
Series
FBS1
Termination
Solder
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.114288oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.3911 Datasheet
Download the complete datasheet for Schurter 0031.3911 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

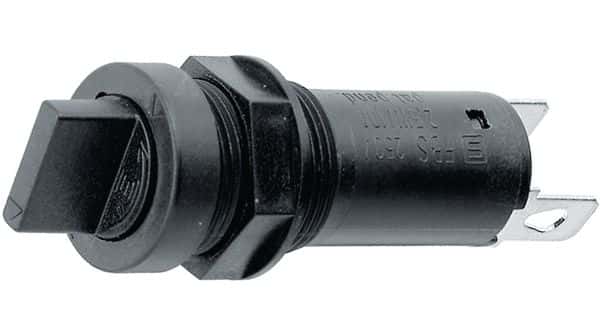

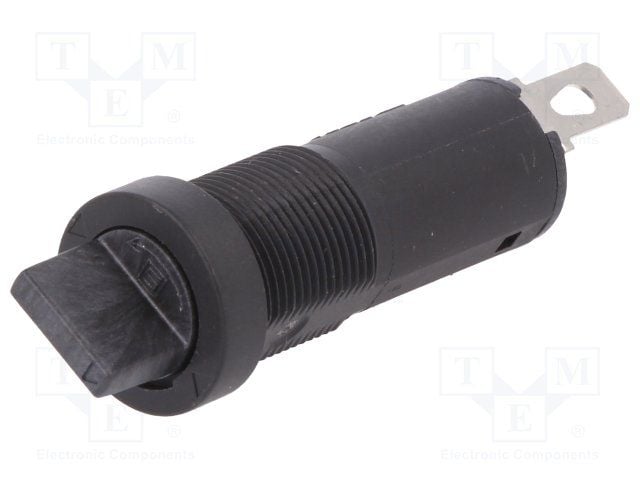

Product Images
