Illuminated fuse holder for 5mm x 20mm fuses, rated for 10A at 250VAC. Features through-hole mounting with PC pin termination and a thermoplastic body. Operates across a wide temperature range of -40°C to 85°C and boasts UL94 V-0 flammability rating. Approvals include UL, CSA, VDE, IEC, and EN.
Voltage250V
Voltage Rating250V
Current Rating10A
MountingHorizontal, PCB, Through Hole
Quick Jump:
Technical Specifications
Schurter 0031.3981 technical specifications.
General
Approvals
UL, CSA, VDE, IEC, EN
Body Material
Thermoplastic
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
10A
Depth
13mm
Flammability Rating
UL94 V-0
Fuse Current
10A
Fuse Size
5mm x 20mm
Illumination Type
Illuminated
Lead Free
Lead Free
Length
35.1mm
Material
Tin, Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Horizontal, PCB, Through Hole
Number of Circuits
1
Number of Poles
1
Orientation
Horizontal
Package Quantity
100
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
No
Series
FBS2
Termination
PC Pin
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.232808oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.3981 Datasheet
Download the complete datasheet for Schurter 0031.3981 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

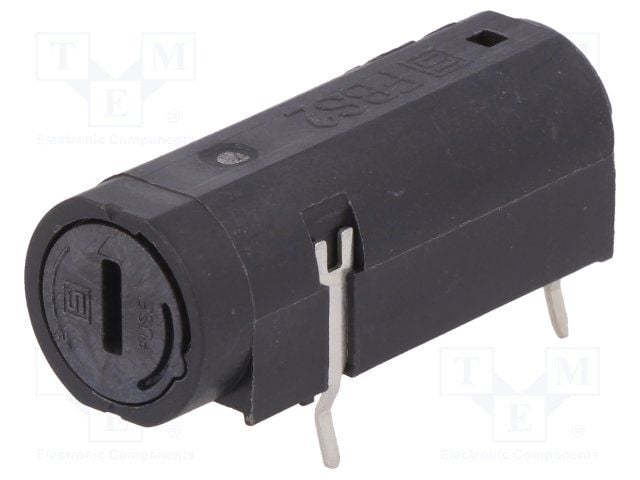

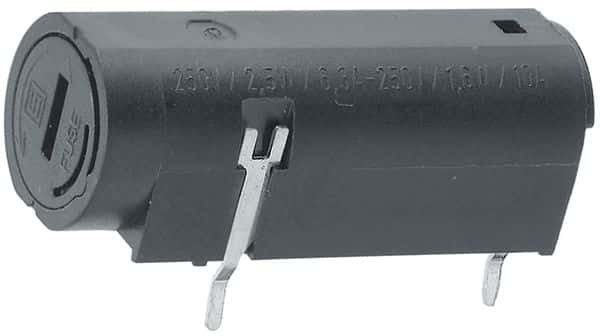

Product Images
