10A, 600VDC/600VAC fuse holder with screw mount lug termination. Features a 1-pole, 1-circuit design with silver contacts and nickel plating. Constructed from thermoplastic and thermoset materials with a UL94 V-0 flammability rating. Operates within a temperature range of -40°C to 85°C and is UL and CSA approved. Designed for 5mm x 20mm fuse sizes.
Package600
Voltage600V
Voltage Rating250V
Current Rating10A
Quick Jump:
Technical Specifications
Schurter 0031.5001 technical specifications.
General
Approvals
UL, CSA
Body Material
Thermoplastic, Thermoset
Package/Case
600
Color
Black
Contact Material
Silver
Contact Plating
Nickel
Current Rating
10A
Depth
47mm
Flammability Rating
UL94 V-0
Fuse Size
5mm x 20mm
Illumination Type
Illuminated
Lead Free
Lead Free
Length
100mm
Material
Silver, Thermoset
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Chassis Mount, Screw
Number of Circuits
1
Number of Poles
1
Package Quantity
100
Packaging
Bulk
Series
UH
Termination
Lug
Voltage
600V
Voltage Rating
250V
Voltage Rating (AC)
600V
DC Rated Voltage
600V
Weight
0.130514oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.5001 Datasheet
Download the complete datasheet for Schurter 0031.5001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

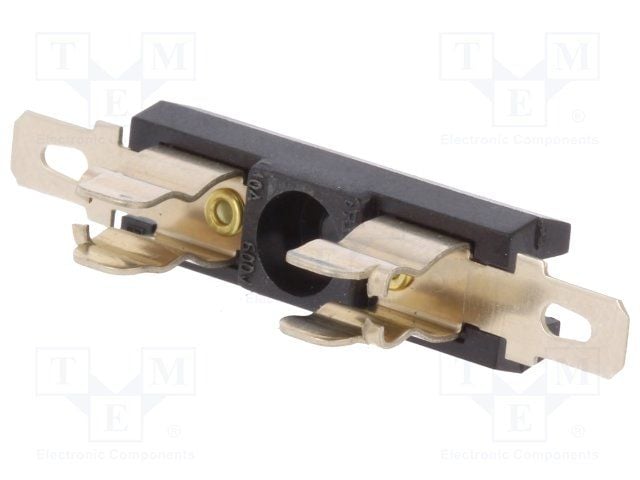

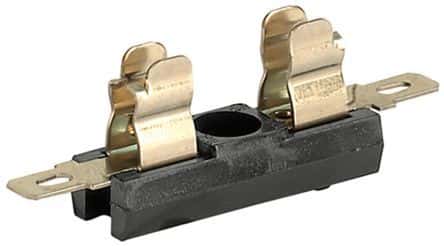

Product Images
