Illuminated fuse holder strip for 5mm x 20mm fuses, featuring a 10-pole, single-circuit design. Constructed with thermoplastic and thermoset body materials, it offers silver contacts with nickel plating and lug termination. Rated for 600V AC and 600V DC, with a maximum operating temperature of 85°C and a minimum of -40°C. This chassis mountable component has a 10A current rating and a 100mm length.
Package600
Voltage600V
Voltage Rating250V
Current Rating10A
Quick Jump:
Technical Specifications
Schurter 0031.5010 technical specifications.
General
Body Material
Thermoplastic, Thermoset
Package/Case
600
Color
Black
Contact Material
Silver
Contact Plating
Nickel
Current Rating
10A
Depth
47mm
Fuse Size
5mm x 20mm
Illumination Type
Illuminated
Lead Free
Lead Free
Length
100mm
Material
Silver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Chassis Mount, Screw
Number of Circuits
10
Number of Poles
10
Package Quantity
10
Packaging
Bulk
Reach SVHC Compliant
No
Series
UH
Termination
Lug
Voltage
600V
Voltage Rating
250V
Voltage Rating (AC)
600V
DC Rated Voltage
600V
Weight
1.340411oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.5010 Datasheet
Download the complete datasheet for Schurter 0031.5010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

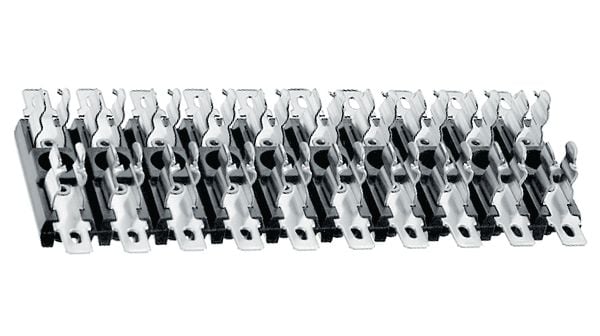

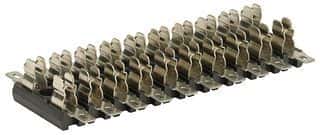

Product Images
