Radial fuse holder for 6.3A, 250V AC/DC applications, featuring a vertical, through-hole PCB mount with PC pin termination. Constructed from black UL94 V-0 rated thermoplastic, it utilizes a copper alloy contact material with tin plating. This illuminated, single-pole, single-circuit component operates within a -40°C to 85°C temperature range and is supplied in a box of 100.
PackageRadial
Voltage250V
Voltage Rating250V
Current Rating6.3A
Quick Jump:
Technical Specifications
Schurter 0031.7601 technical specifications.
General
Approvals
UL, CSA, IEC, EN
Body Material
Thermoplastic
Package/Case
Radial
Color
Black
Contact Material
Copper Alloy, Gold, Tin
Contact Plating
Tin
Current Rating
6.3A
Flammability Rating
UL94 V-0
Fuse Current
6.3A
Fuse Size
Radial 0.2 (5.08mm) Pitch
Illumination Type
Illuminated
Lead Free
Lead Free
Material
Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Number of Circuits
1
Number of Poles
1
Orientation
Vertical
Package Quantity
100
Packaging
Box
Reach SVHC Compliant
No
Series
FMS
Termination
PC Pin
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.013404oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.7601 Datasheet
Download the complete datasheet for Schurter 0031.7601 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

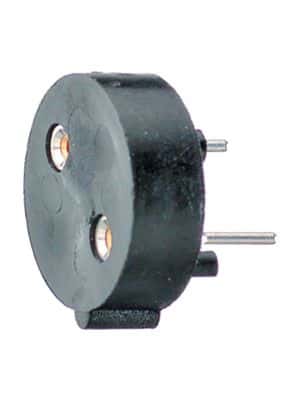

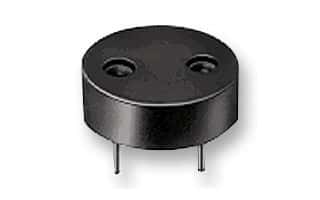

Product Images
