Illuminated, single-pole fuse holder for 5A, 125VAC applications. Features a 5.2mm width, 12mm length, and 6mm height with a surface mount termination. Constructed with a thermoplastic body, copper alloy contacts with tin plating, and silicone insulation, operating within a -40°C to 85°C temperature range. Designed for OMF 63, OMF 125, and OMT 125 fuse sizes.
Voltage125V
Voltage Rating125V
Current Rating5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Schurter 0031.7701.11 technical specifications.
General
Body Material
Thermoplastic
Color
White, Beige
Contact Material
Copper Alloy
Contact Plating
Tin
Current Rating
5A
Fuse Current
5A
Fuse Size
OMF 63, OMF 125, OMT 125
Height
6mm
Illumination Type
Illuminated
Insulation Material
Silicone
Lead Free
Lead Free
Length
12mm
Material
Tin
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Circuits
1
Number of Poles
1
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Series
OMH 125
Terminal Material
Brass
Termination
SMD/SMT
Voltage
125V
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
0.016932oz
Width
5.2mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.7701.11 Datasheet
Download the complete datasheet for Schurter 0031.7701.11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

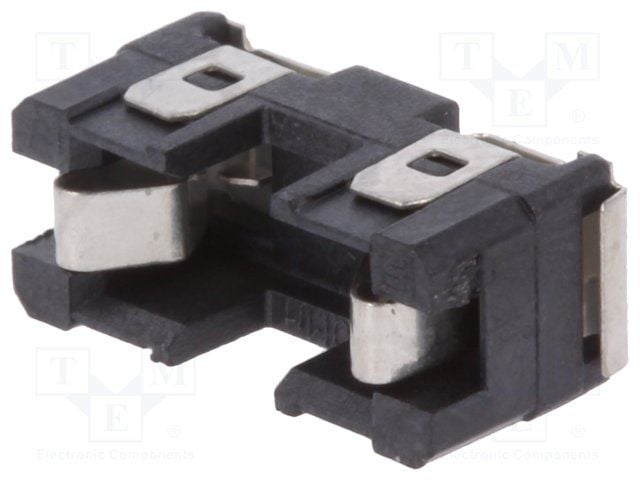

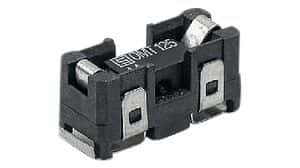

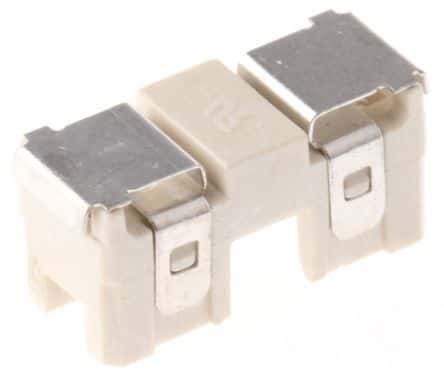

Product Images
