Surface mount fuse holder for 5mm x 20mm cartridge fuses, rated for 500V DC and 250V AC at 10A. Features a black thermoplastic body with tin-plated copper alloy contacts, suitable for PCB mounting via J-lead termination. Operates within a temperature range of -40°C to 85°C and boasts UL94 V-0 flammability rating. Approvals include UL, CSA, IEC, and EN.
PackageSMD/SMT
Voltage500V
Voltage Rating250V
Current Rating10A
Quick Jump:
Technical Specifications
Schurter 0031.8221 technical specifications.
General
Approvals
UL, CSA, IEC, EN
Body Material
Thermoplastic
Package/Case
SMD/SMT
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
10A
Depth
10.8mm
Flammability Rating
UL94 V-0
Fuse Current
10A
Fuse Size
0.197 Dia x 0.787 L (5mm x 20mm)
Illumination Type
Illuminated
Lead Free
Lead Free
Length
25mm
Material
Thermoplastic, Tin
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount, Holder, PCB
Number of Circuits
1
Number of Poles
1
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Series
OGN-SMD
Termination
J-Lead
Voltage
500V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
500V
Weight
0.065257oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.8221 Datasheet
Download the complete datasheet for Schurter 0031.8221 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

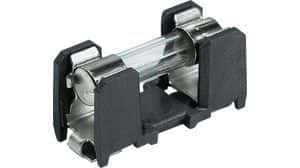

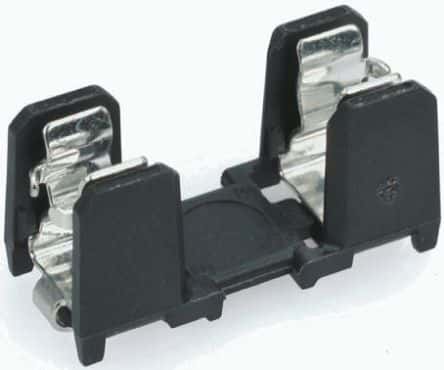

Product Images
