Surface mount fuseholder for 5x20mm fuses, featuring a black thermoplastic body and tin-plated copper alloy contacts. Rated for 250VAC and 500VDC, with a 10A current rating and operating temperatures from -40°C to 85°C. This illuminated, single-pole, single-circuit component offers UL94 V-0 flammability and is supplied on tape and reel for efficient PCB assembly.
PackageSMD/SMT
Voltage500V
Voltage Rating250V
Current Rating10A
Quick Jump:
Technical Specifications
Schurter 0031.8225 technical specifications.
General
Body Material
Thermoplastic
Package/Case
SMD/SMT
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
10A
Depth
10.8mm
Flammability Rating
UL94 V-0
Fuse Size
5mm x 20mm
Illumination Type
Illuminated
Lead Free
Lead Free
Length
25mm
Material
Tin
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount, Holder, PCB
Number of Circuits
1
Number of Poles
1
Package Quantity
400
Packaging
Tape and Reel
Series
OGN-SMD
Termination
SMD/SMT
Voltage
500V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
500V
Weight
0.066668oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.8225 Datasheet
Download the complete datasheet for Schurter 0031.8225 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

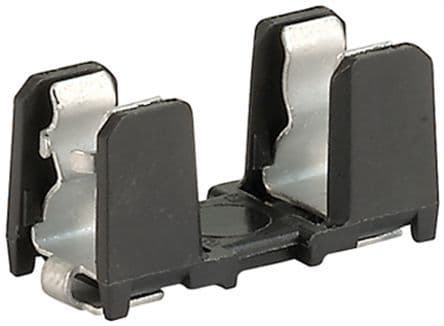

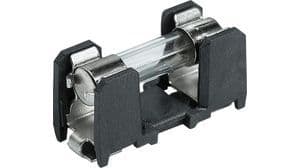

Product Images
