Illuminated fuse holder with a 16A fuse capacity and 600V AC/DC rating. Features snap-in mounting for through-hole applications, a thermoplastic body with UL94 V-0 flammability, and copper alloy contacts with tin plating. Designed for 5mm x 20mm and 6.35mm x 32mm fuses, operating between -40°C and 85°C. Approvals include UL, CSA, IEC, and EN.
Voltage600V
Voltage Rating250V
Current Rating10A
MountingThrough Hole, Screw, PCB, Rivet
Quick Jump:
Technical Specifications
Schurter 0031.8231 technical specifications.
General
Approvals
UL, CSA, IEC, EN
Body Material
Thermoplastic
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
10A
Depth
10.9mm
Flammability Rating
UL94 V-0
Fuse Current
16A
Fuse Size
0.25 Dia x 1.26 L (6.35mm x 32mm), 5mm x 20mm
Illumination Type
Illuminated
Lead Free
Lead Free
Length
35.4mm
Material
Thermoplastic, Tin
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, Screw, PCB, Rivet
Number of Circuits
1
Number of Poles
1
Orientation
Horizontal
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
Series
OGD
Termination
PC Pin
Voltage
600V
Voltage Rating
250V
Voltage Rating (AC)
600V
DC Rated Voltage
600V
Weight
0.130514oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.8231 Datasheet
Download the complete datasheet for Schurter 0031.8231 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

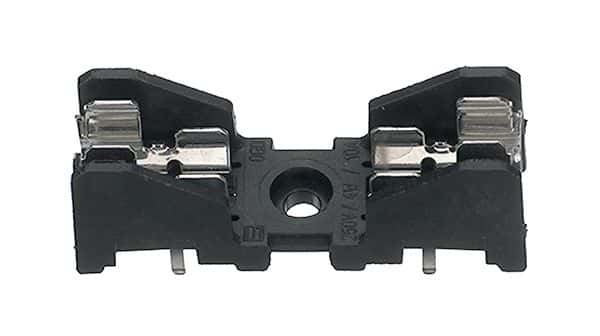

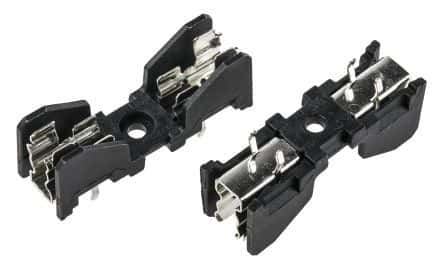

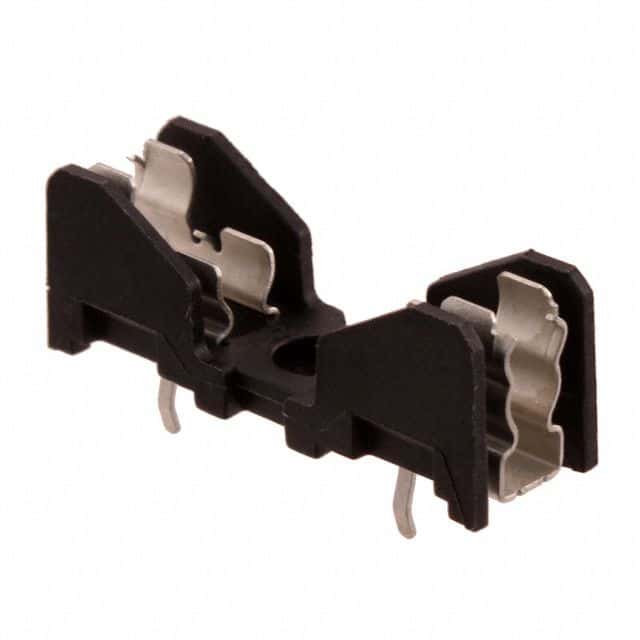

Product Images
