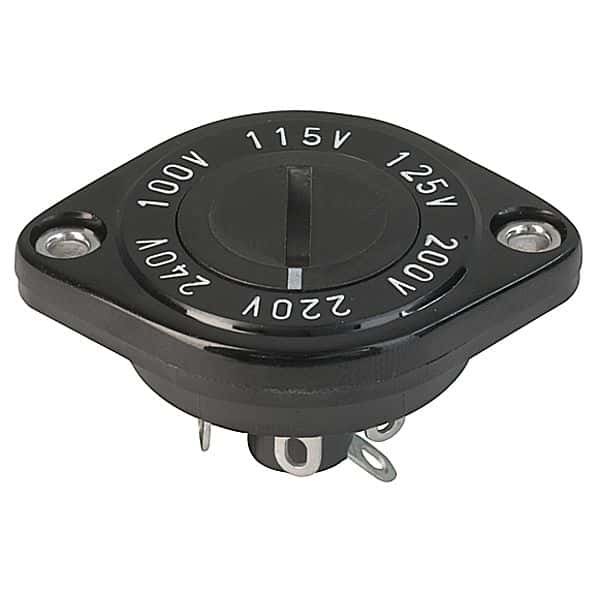

SP6T rotary selector switch, non-illuminated, featuring a 60° indexing angle and slotted spindle for panel mounting. Rated for 10A at 250VAC, this switch offers solder termination and a mechanical life of 300 cycles. Operating temperature range is -40°C to 85°C, with IP40 ingress protection. Approvals include cURus and ENEC, and the component is RoHS compliant.
Voltage Rating250V
Current Rating10A
MountingPanel
Quick Jump:
Technical Specifications
Schurter 0033.1109 technical specifications.
General
Approvals
cURus, ENEC
Current Rating
10A
Depth
28.7mm
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Length
47mm
Max Current Rating
10A
Max Operating Temperature
85°C
Mechanical Life
300Cycles
Min Operating Temperature
-40°C
Mount
Panel
Number of Positions
6
Package Quantity
25
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWP
Termination
Solder
Throw Configuration
SP6T
Voltage Rating
250V
Voltage Rating (AC)
250V
Weight
0.58202oz
Width
35mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0033.1109 Datasheet
Download the complete datasheet for Schurter 0033.1109 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
