Voltage Rating250V
Current Rating6.3A
MountingPanel
Quick Jump:
Technical Specifications
Schurter 0033.1134 technical specifications.
General
Current Rating
6.3A
Depth
28.7mm
Illumination Type
Non-Illuminated
Length
47mm
Max Operating Temperature
85°C
Mechanical Life
300Cycles
Min Operating Temperature
-40°C
Mount
Panel
Number of Positions
6
Package Quantity
25
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
RoHS Compliant
Yes
Series
SWP
Termination
Solder
Throw Configuration
SP6T
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.58202oz
Width
35mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0033.1134 Datasheet
Download the complete datasheet for Schurter 0033.1134 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

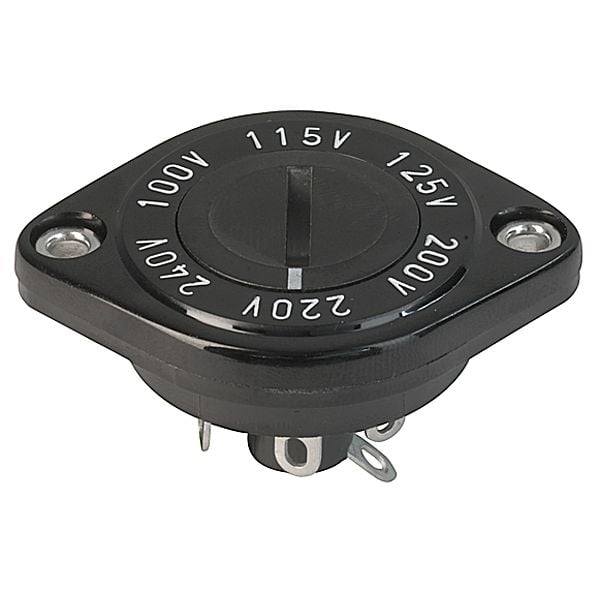

Product Images
