SPDT rotary selector switch with 2 positions and 60° indexing. Features a slotted spindle for panel mounting and solder lug termination. Rated for 6.3A at 250VAC, with a mechanical life of 300 cycles. Operates within a temperature range of -40°C to 85°C and offers IP40 protection. RoHS compliant and lead-free.
Voltage Rating250V
Current Rating6.3A
MountingPanel
Quick Jump:
Technical Specifications
Schurter 0033.4504 technical specifications.
General
Contact Current Rating
6.3A
Current Rating
6.3A
Depth
25.8mm
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Current Rating
6.3A
Max Operating Temperature
85°C
Mechanical Life
300Cycles
Min Operating Temperature
-40°C
Mount
Panel
Number of Positions
2
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWA
Switch Function
On-On
Termination
Lug
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.134041oz
Width
15.2mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0033.4504 Datasheet
Download the complete datasheet for Schurter 0033.4504 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

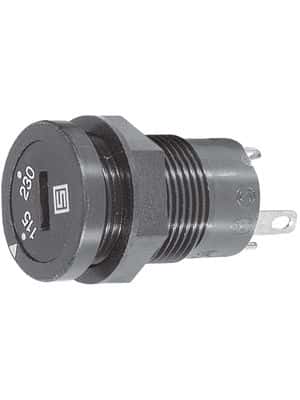

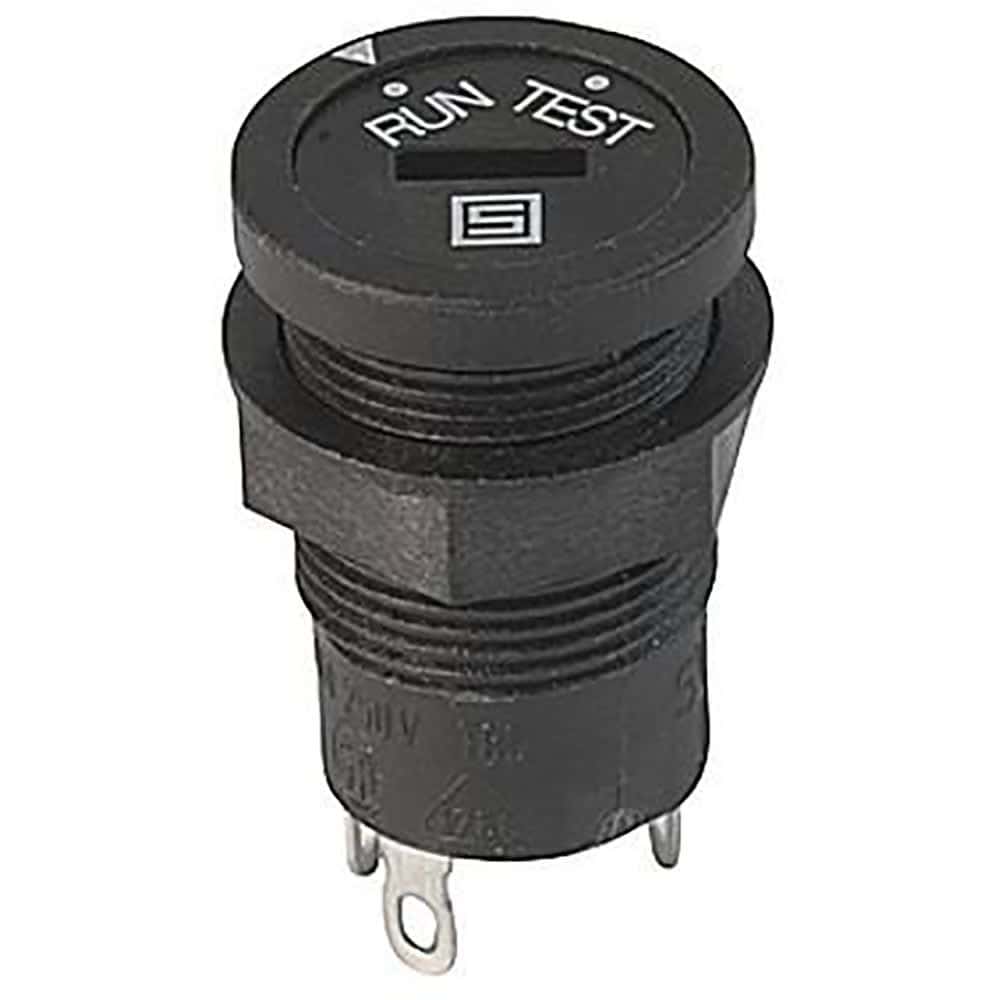

Product Images
