Fast-acting electric fuse, 100mA current rating, 250VAC/250VDC voltage rating, and 35A interrupting rating. Features a 5x20mm glass body with nickel-plated clip terminations, suitable for inline or holder mounting. Operating temperature range from -55°C to 125°C, with a maximum power dissipation of 1.6W and a dropout voltage of 840mV. Approvals include VDE, cURus, CCC, UL, and CSA, with RoHS and lead-free compliance.
Current100mA
Voltage Rating250V
Current Rating100mA
MountingHolder, Clip
Quick Jump:
Technical Specifications
Schurter 0034.1506 technical specifications.
General
Approvals
VDE, cURus, CCC, UL, CSA
Body Material
Glass
Contact Plating
Nickel
Current
100mA
Current Rating
100mA
Diameter
5mm
Dropout Voltage
840mV
Fuse Current
100mA
Fuse Size
5 x 20mm
Height
20mm
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Max Voltage Rating (AC)
250V
Mount
Holder, Clip
Package Quantity
10
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FSF 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.031747oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.1506 Datasheet
Download the complete datasheet for Schurter 0034.1506 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

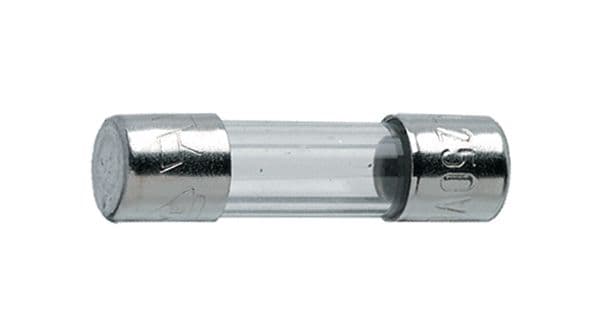

Product Images
