Schurter
0034.1522
Electric Fuse, Fast Blow, 4A, 250VAC, 40A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT
Voltage Rating250V
Current Rating4A
MountingHolder, Clip
Quick Jump:
Technical Specifications
Schurter 0034.1522 technical specifications.
General
Approvals
UL, CSA, VDE
Body Material
Glass
Contact Plating
Nickel
Current Rating
4A
Diameter
5mm
Fuse Current
4A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
2.5W
Max Voltage Rating (AC)
250V
Mount
Holder, Clip
Package Quantity
10
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FSF 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.032452oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.1522 Datasheet
Download the complete datasheet for Schurter 0034.1522 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

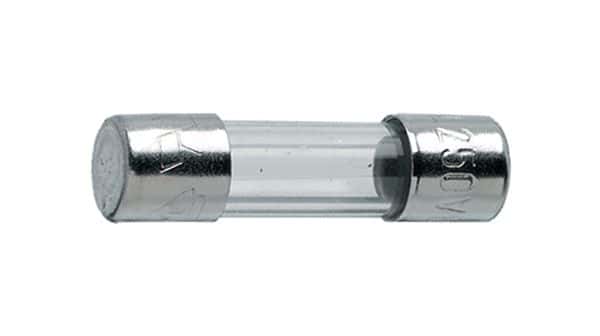

Product Images
