Time delay PTC resettable fuse, 50mA current rating, 250VAC voltage rating. Features a glass body with nickel plating and a 5 x 20mm fuse size. Operates within a temperature range of -55°C to 125°C with a maximum power dissipation of 1.6W. RoHS compliant and lead-free.
Voltage Rating250V
Current Rating50mA
MountingHolder
Power1.6W
Quick Jump:
Technical Specifications
Schurter 0034.3104 technical specifications.
General
Blow Characteristic
TIME DELAY
Body Material
Glass
Contact Plating
Nickel
Current Rating
50mA
Diameter
5.2mm
Fuse Current
50mA
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Max Voltage Rating (AC)
250V
Mount
Holder
Package Quantity
10
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FST 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
Weight
0.033158oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.3104 Datasheet
Download the complete datasheet for Schurter 0034.3104 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

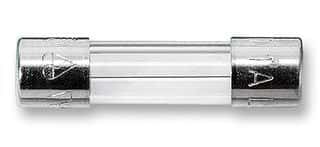

Product Images
