TIME DELAY electric fuse, 500mA current rating, 250V AC/DC voltage rating. Features a glass body, 5 x 20mm fuse size, and clip termination for holder or surface mount applications. Operates across a wide temperature range from -55°C to 125°C with a maximum power dissipation of 1.6W. Approvals include UL, CSA, VDE, and SEMKO, with RoHS compliance.
Storage20mm
Voltage Rating250V
Current Rating500mA
MountingHolder, Surface Mount, Clip
Quick Jump:
Technical Specifications
Schurter 0034.3114 technical specifications.
General
Approvals
UL, CSA, VDE, SEMKO
Blow Characteristic
TIME DELAY
Body Material
Glass
Current Rating
500mA
Diameter
5.2mm
Dropout Voltage
160mV
Fuse Current
500mA
Fuse Size
5 x 20mm
Height
20mm
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Max Voltage Rating (AC)
250V
Mount
Holder, Surface Mount, Clip
Package Quantity
10
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FST 5x20
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.03351oz
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.3114 Datasheet
Download the complete datasheet for Schurter 0034.3114 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

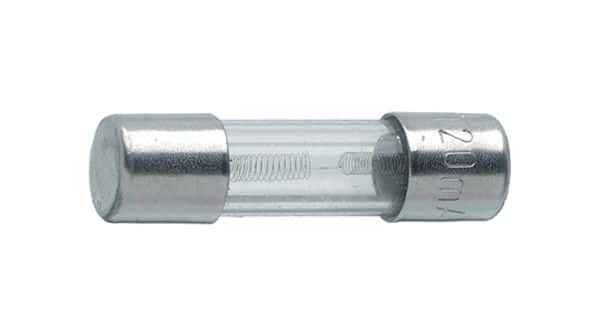

Product Images
