Miniature slow-blow fuse, 1A, 250V AC/DC, featuring a 5 x 20mm glass cartridge body. Designed for time-delay operation, this fuse offers a 1.6W power dissipation and operates across a wide temperature range from -55°C to 125°C. Approvals include UL, CSA, VDE, and SEMKO, with RoHS compliance. Termination is via clip for holder mounting.
Storage20mm
Voltage Rating250V
Current Rating1A
MountingHolder, Clip
Quick Jump:
Technical Specifications
Schurter 0034.3117 technical specifications.
General
Approvals
UL, CSA, VDE, SEMKO
Blow Characteristic
TIME DELAY
Body Material
Glass
Contact Plating
Nickel
Current Rating
1A
Diameter
5mm
Dropout Voltage
60mV
Fuse Current
1A
Fuse Size
5 x 20mm
Height
20mm
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Max Voltage Rating (AC)
250V
Mount
Holder, Clip
Package Quantity
10
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FST 5x20
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.033158oz
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.3117 Datasheet
Download the complete datasheet for Schurter 0034.3117 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

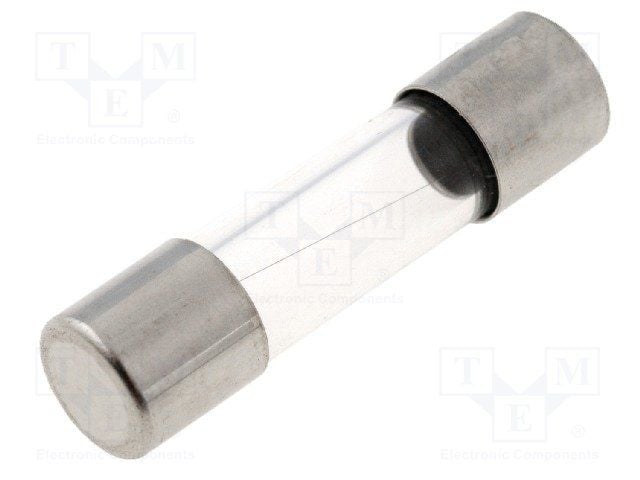

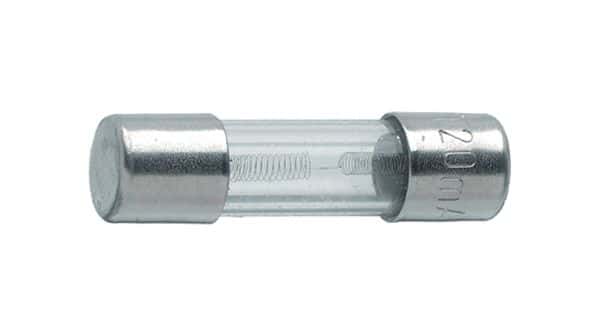

Product Images
