Time delay, axial leaded PTC resettable fuse with a 1.6A current rating and 250V AC/DC voltage rating. Features a glass body, nickel plated contacts, and a 5 x 20mm fuse size. Operates within a temperature range of -55°C to 125°C with a maximum power dissipation of 1.6W. This RoHS compliant component is suitable for holder or clip mounting.
Storage20mm
Voltage Rating250V
Current Rating1.6A
MountingHolder, Surface Mount, Clip
Quick Jump:
Technical Specifications
Schurter 0034.3119 technical specifications.
General
Approvals
UL, CSA, VDE, SEMKO
Blow Characteristic
TIME DELAY
Body Material
Glass
Contact Plating
Nickel
Current Rating
1.6A
Diameter
5.4mm
Dropout Voltage
60mV
Fuse Current
1.6A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
22.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Max Voltage Rating (AC)
250V
Mount
Holder, Surface Mount, Clip
Mounting Style
AXIAL
Package Quantity
10
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FST 5x20
Size
20mm
Termination
Axial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.033158oz
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.3119 Datasheet
Download the complete datasheet for Schurter 0034.3119 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

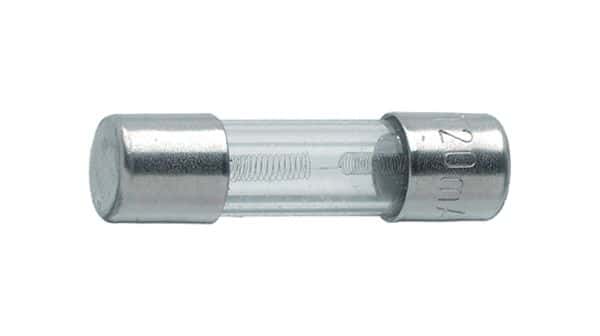

Product Images
