Time delay electric fuse, 4A current rating, 250V AC/DC voltage rating, featuring a 5 x 20mm glass body. Operating temperature range from -55°C to 125°C with a maximum power dissipation of 1.6W. Approved by UL, CSA, VDE, and SEMKO, this RoHS compliant fuse is designed for holder or clip mounting.
Storage20mm
Voltage Rating250V
Current Rating4A
MountingHolder, Surface Mount, Clip
Quick Jump:
Technical Specifications
Schurter 0034.3123 technical specifications.
General
Approvals
UL, CSA, VDE, SEMKO
Blow Characteristic
TIME DELAY
Body Material
Glass
Current Rating
4A
Diameter
5.2mm
Dropout Voltage
60mV
Fuse Current
4A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Max Voltage Rating (AC)
250V
Mount
Holder, Surface Mount, Clip
Package Quantity
10
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FST 5x20
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.03351oz
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.3123 Datasheet
Download the complete datasheet for Schurter 0034.3123 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

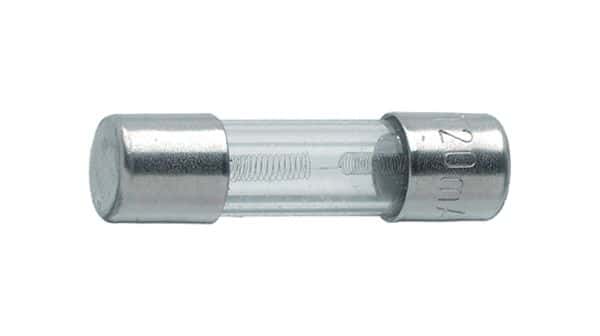

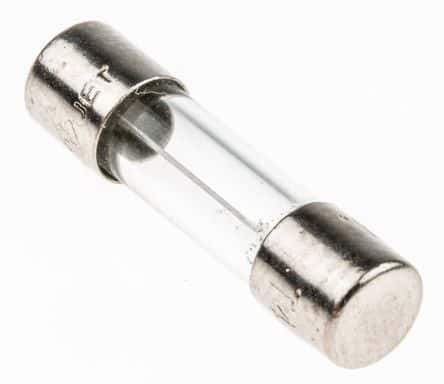

Product Images
