Subminiature fast-acting fuse with a 100mA current rating and 125V AC/DC voltage rating. Features a thermoplastic body, radial termination, and tin-plated copper leads for through-hole PCB mounting. Operating temperature range spans from -55°C to 85°C, with a maximum power dissipation of 100mW. This RoHS compliant component is cULus, UL, CSA, IEC, and EN approved.
PackageRadial
Current100mA
Voltage Rating125V
Current Rating100mA
Quick Jump:
Technical Specifications
Schurter 0034.4209 technical specifications.
General
Approvals
cURus, UL, CSA, IEC, EN
Body Material
Thermoplastic
Package/Case
Radial
Contact Plating
Tin
Current
100mA
Current Rating
100mA
Diameter
6.4mm
Dropout Voltage
690mV
Fuse Size
6.4 X 8.8mm
Height
0.346inch
Lead Free
Lead Free
Lead Length
4.3mm
Length
0.346inch
Material
Copper, Tin, Plastic
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Power Dissipation
100mW
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125V
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
RoHS Compliant
Yes
Series
MSF 125
Termination
Radial
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
0.011993oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.4209 Datasheet
Download the complete datasheet for Schurter 0034.4209 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

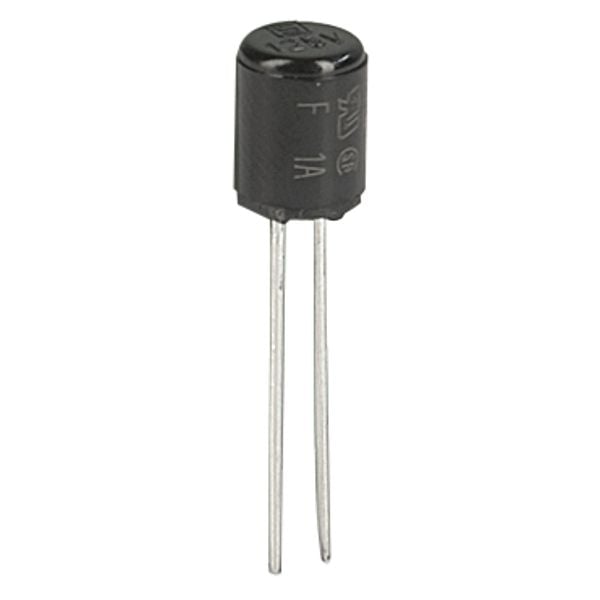

Product Images
