Very fast-acting electric fuse designed for circuit protection. Features a 250VAC/250VDC voltage rating with an 80mA current rating and 35A interrupt rating. Constructed with a thermoplastic body and tin-plated copper contacts, this through-hole component has a body diameter of 8.5mm and a lead length of 4.3mm. Operating temperature range is -55°C to 125°C, with UL94 V-0 flammability. Approvals include UL, CSA, IEC, and EN.
PackageRadial
Current80mA
Storage8.5mm
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter 0034.6003 technical specifications.
General
Approvals
UL, CSA, IEC, EN
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Contact Plating
Tin
Current
80mA
Current Rating
80mA
Diameter
8.5mm
Dropout Voltage
280mV
Flammability Rating
UL94 V-0
Fuse Size
8.5 X 8.5mm
Lead Free
Lead Free
Lead Length
4.3mm
Length
0.335inch
Material
Copper, Tin, Plastic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
140mW
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mount
Through Hole, PCB
Package Quantity
100
RoHS Compliant
Yes
Series
MSF 250
Size
8.5mm
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.014815oz
Wire/Cable Diameter
0.64mm
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6003 Datasheet
Download the complete datasheet for Schurter 0034.6003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

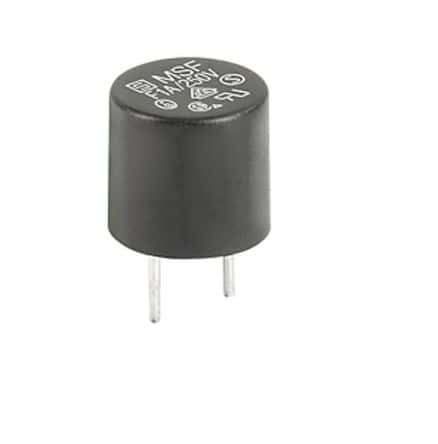

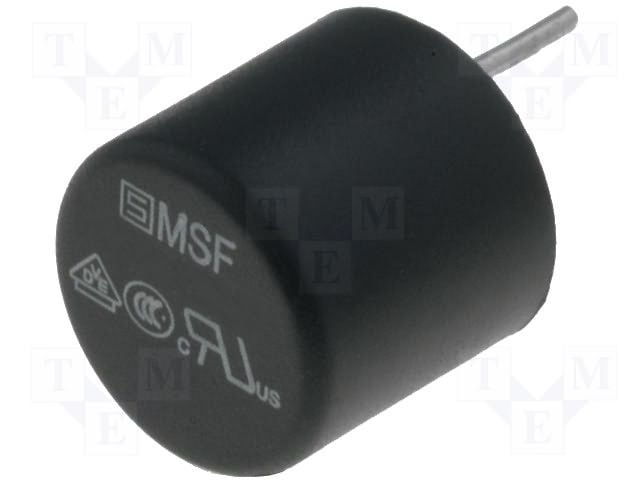

Product Images
